Startools Indonesia

Off Highway Tread Depth Gauge

Availability: In Stock

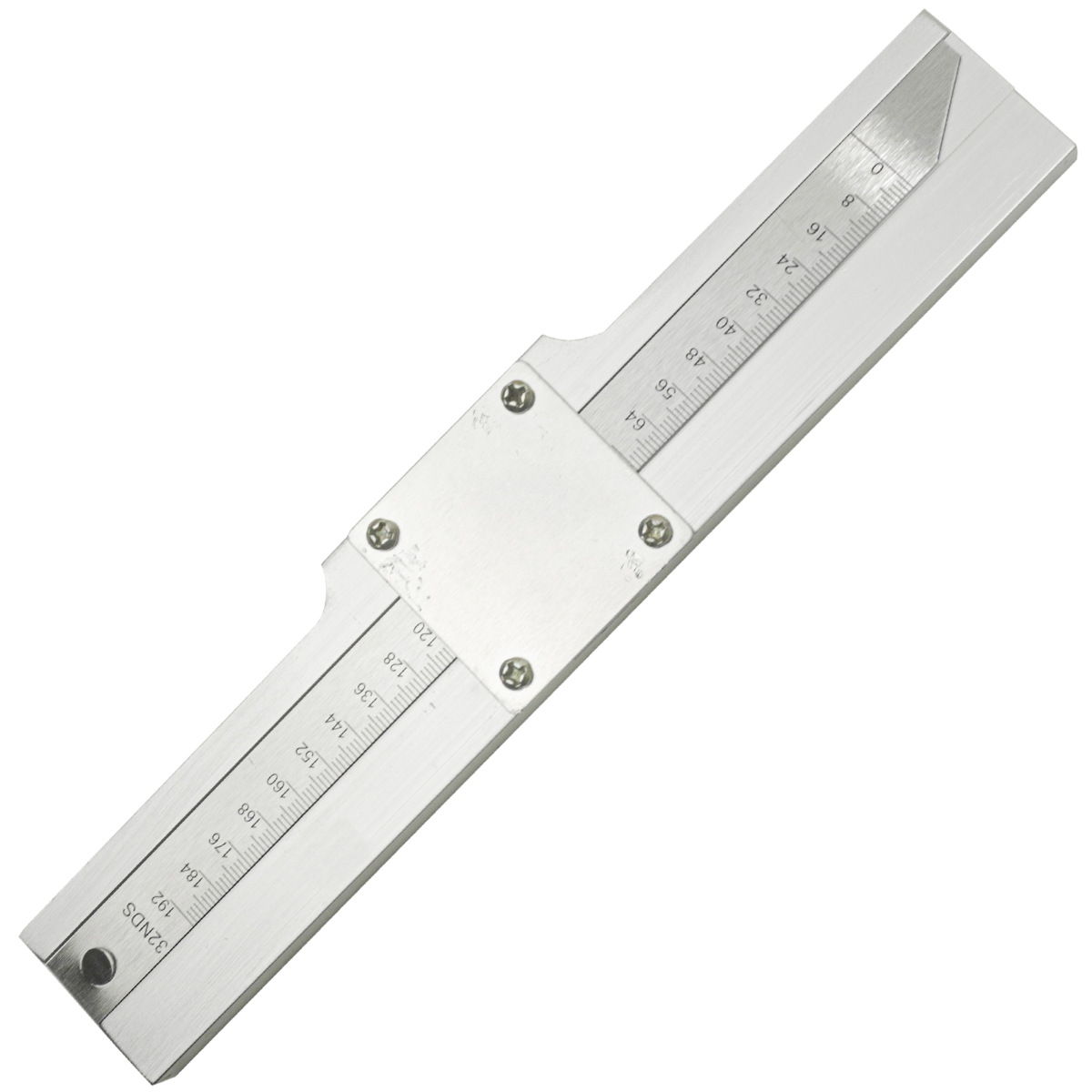

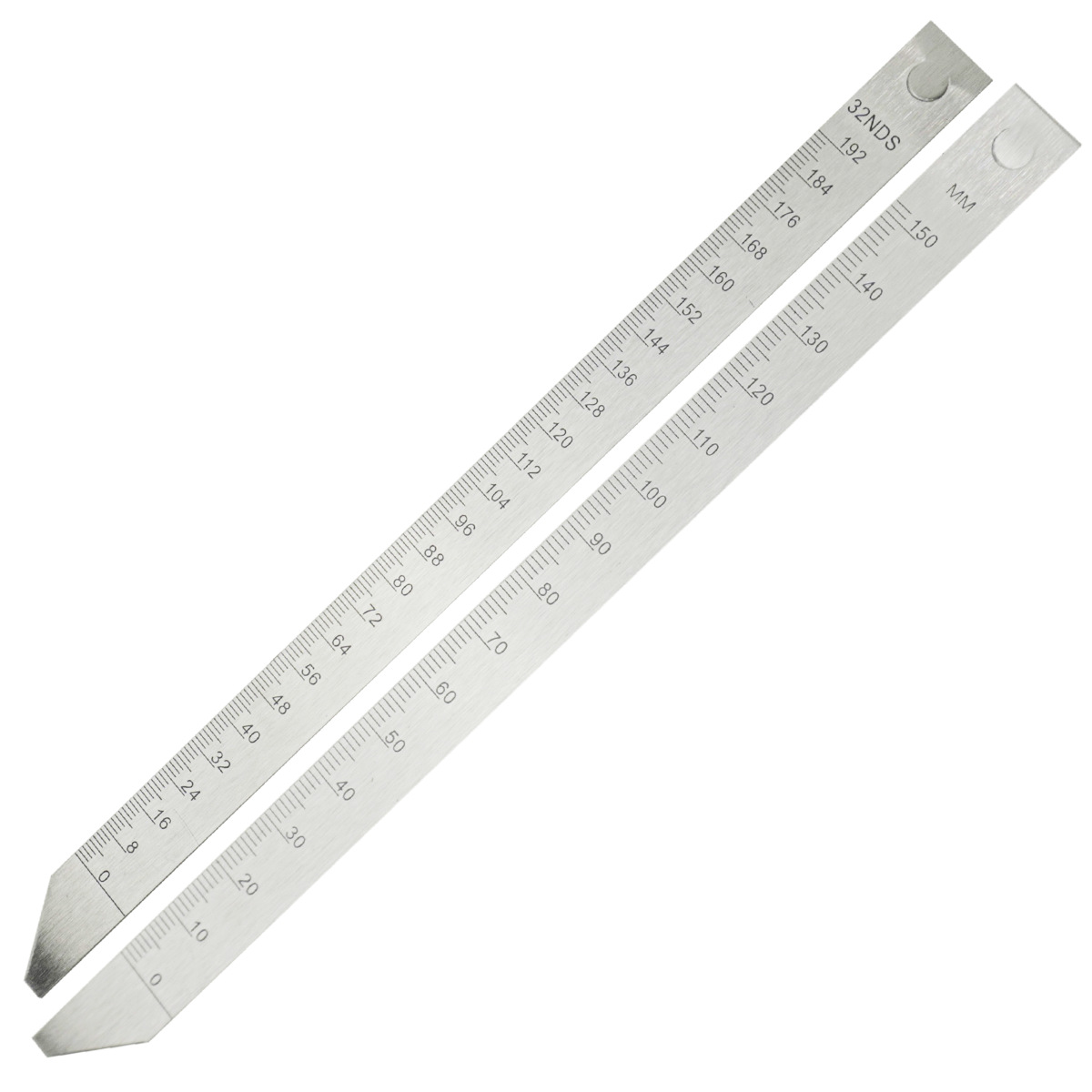

Indicating bar is calibrated with 32nds on one side, other side is millimeters

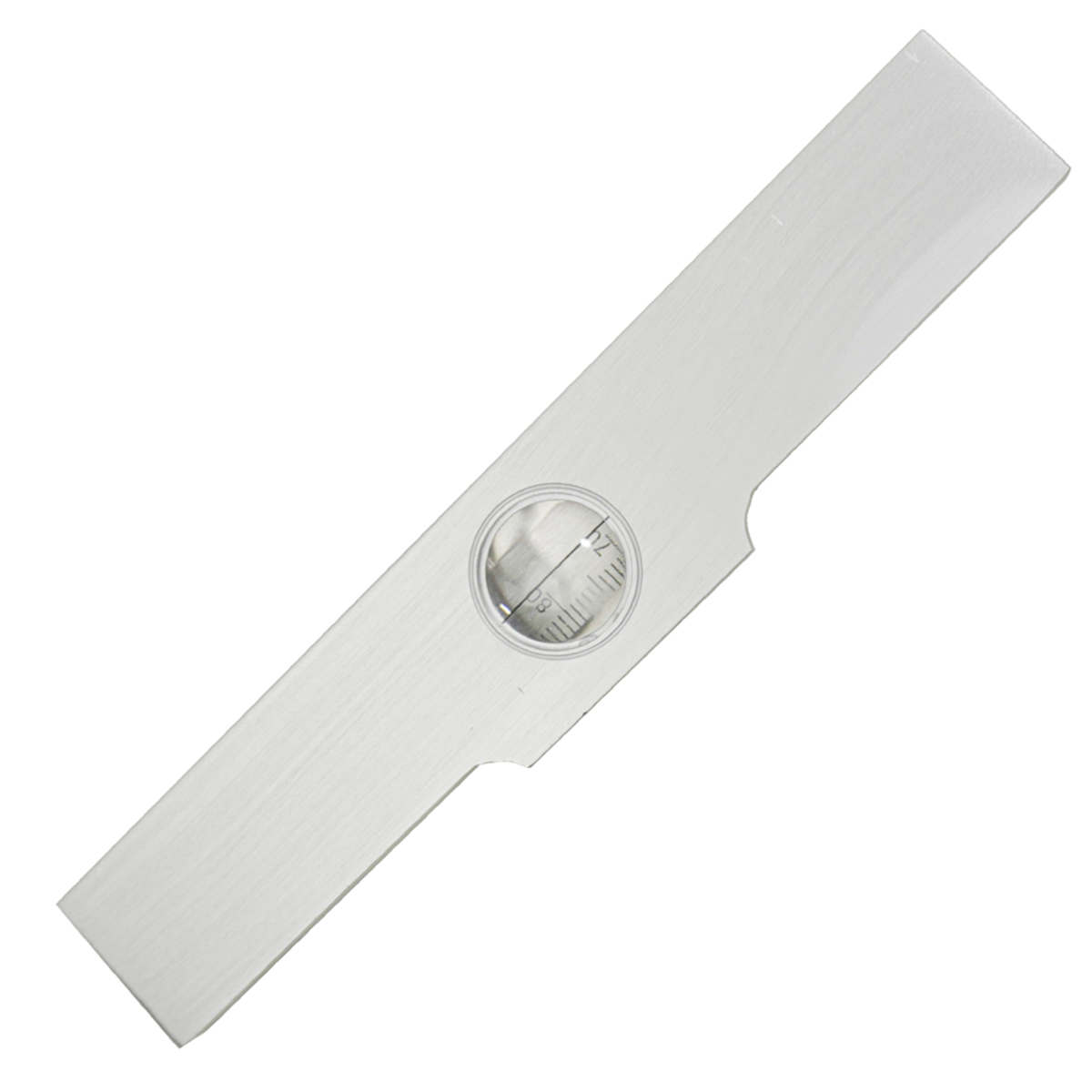

Has magnified sight-glass for easy readability
Measures Tread Depth Up to 6 in
Material: Aluminum

Description

Mfr.PN Length(in) Calibration(in) Part Number
335 7” 0.0313” MT0000420

Quick Comparison

SettingsOff Highway Tread Depth Gauge removeInside Micrometer removeScrew Pitch Gauge removePush Pull Gauge removeBore Gauge removeInside Spring Caliper remove
NameOff Highway Tread Depth Gauge removeInside Micrometer removeScrew Pitch Gauge removePush Pull Gauge removeBore Gauge removeInside Spring Caliper remove
SKU
Rating
Price
Stock
Availability
Add to cart

Read more

Read more

Read more

Read more

Read more

Read more

Description
Indicating bar is calibrated with 32nds on one side, other side is millimeters
Has magnified sight-glass for easy readability
Measures Tread Depth Up to 6 in
Material: Aluminum
Carbide measuring faces
Stainless steel material
Dual display two units of Kilogram & Newton, no unit conversion
Switch freely between load peak (PEAK) test and continuous load value (TRACK) test
Hand-held use or can be mounted on all types of work bench

Two-point contact for detection of geometry  problems such as ovality and taper
Carbide-tipped contact points for extended wear and improved abrasion resistance
Includes all the necessary spacers, interchangeable extensions and ABS storage case
Spring type
Stainless steel material
Content
Mfr.PN Length(in) Calibration(in) Part Number
335 7” 0.0313” MT0000420
Mfr.PN Size (mm) Accuracy (mm) Part Number
233-25 5 - 30 ±5μm MT0000124
233-50 25 - 50 ±6μm MT0000125
233-75 50 - 75 ±7μm MT0000126
233-100 75 - 100 ±8μm MT0000127
233-125 100 - 125 ±9μm MT0000128
Mfr.PN Size (mm) Size (inch) Part Number
274 0.25 • 0.3 • 0.35 • 0.4 • 0.45 • 0.5 • 0.6 • 0.7 • 0.75 • 0.8 • 0.9 • 1.0 • 1.25 • 1.5 • 1.75, 2.0 • 2.5 • 3.0 • 3.5, 4.0 • 4.5 • 5.0 • 5.5 • 6.0 4G • 4-1/2G • 5G • 6G • 7G • 8G • 9G • 10G • 11G • 12G • 13G • 14G • 16G • 18G • 19G • 20G • 22G • 24G • 25G • 26G • 28G • 30G • 32G • 36G • 40G • 48G • 60G • 62G MT0000054
Mfr.PN Max Load (N) Max Load (Kg) Load Graduation (N) Load Graduation (Kg) Part Number
398-50 500 50 2.5 500 MT0000421
Mfr.PN Size(mm) Graduation (mm) Part Number
351-35 18-35 0.01 MT0000424
351-50 35-50 0.01 MT0000425
351-160 50-160 0.01 MT0000417
351-250 150-250 0.01 MT0000418
351-400 250-400 0.01 MT0000419
Mfr.Pn Size (inch) Part Number
259-4 4” MT0000079
259-6 6” MT0000082
259-8 8” MT0000085
259-10 10” MT0000088
259-12 12” MT0000091
259-15 15” MT0000094
259-18 18” MT0000097
259-24 24” MT0000100
259-36 36” MT0000103
WeightN/AN/AN/AN/AN/AN/A
DimensionsN/AN/AN/AN/AN/AN/A
