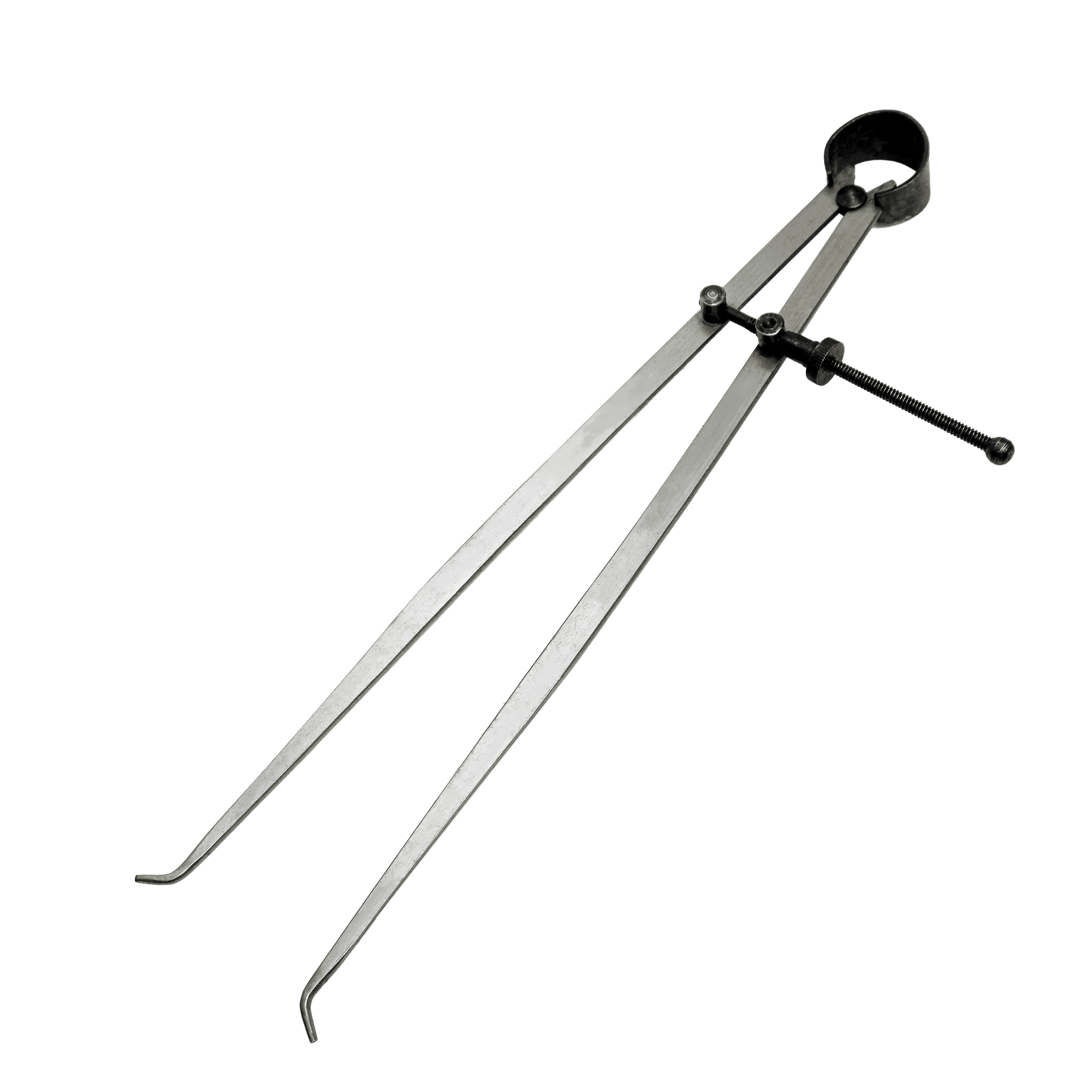

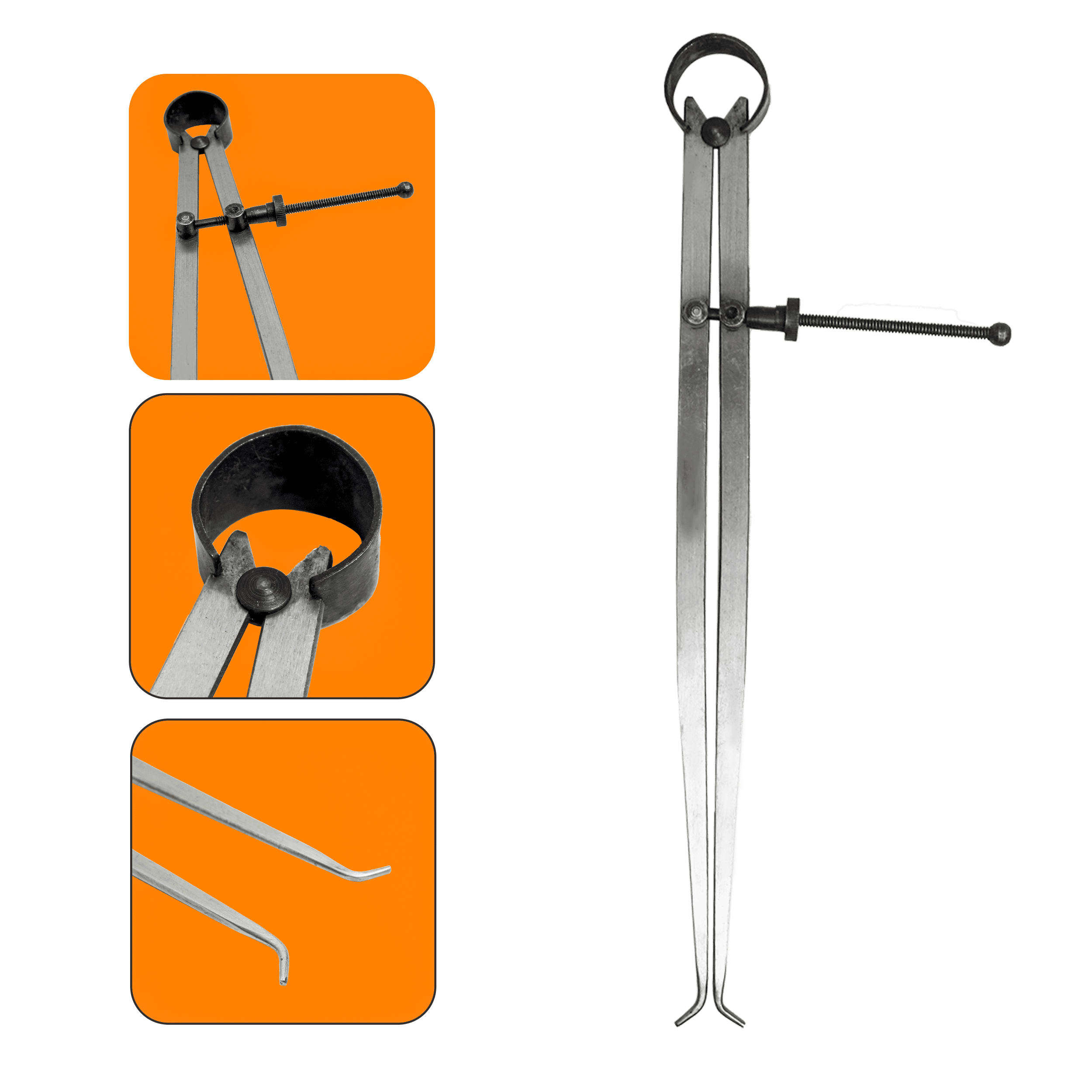

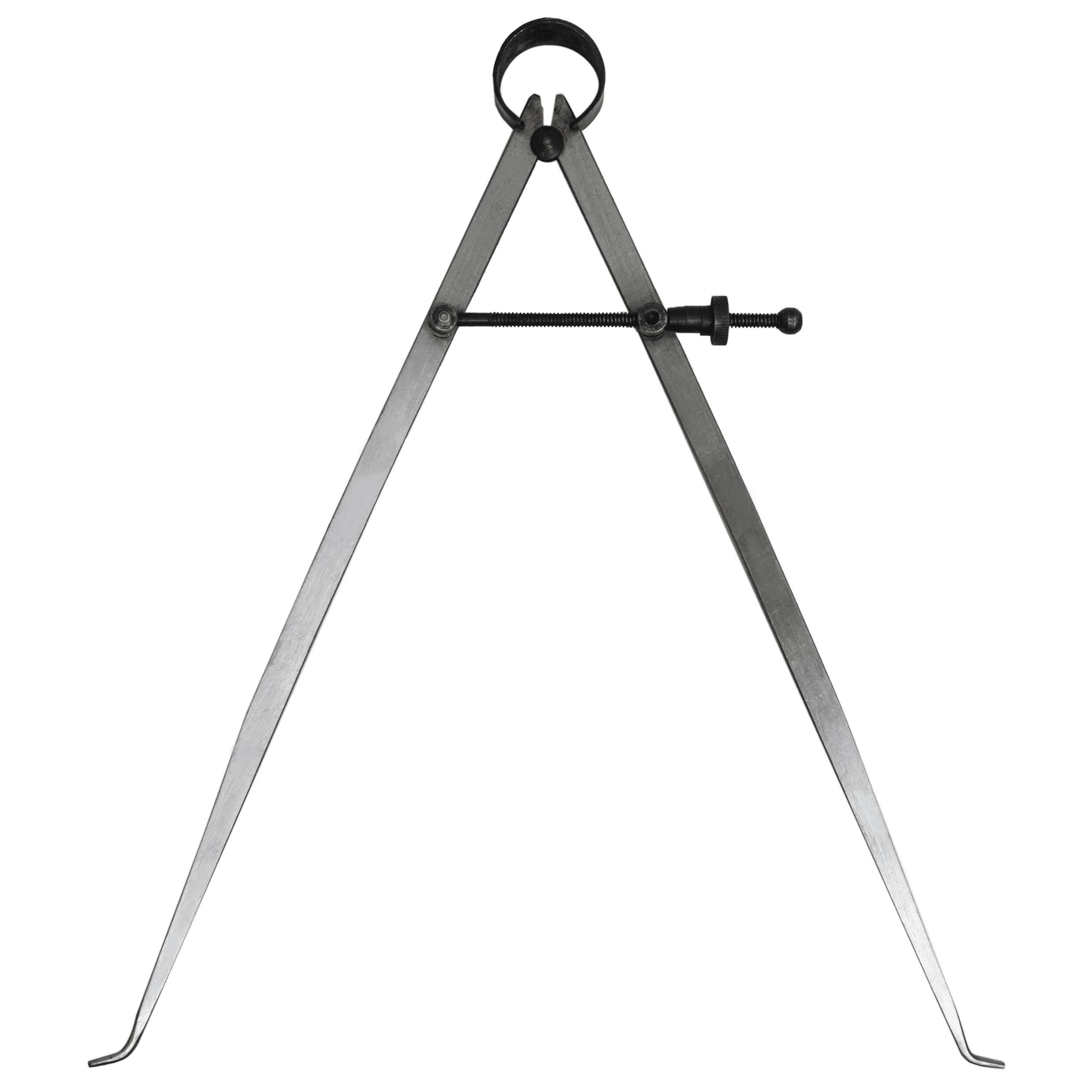

| Description | • Spring type
• Stainless steel material | • Hardened and tempered blade
• Laser etched with inch and mm sizes | • Accuracy: DIN862
• Made of stainless steel
• Satin chrome finish
• Raised sliding faces | • Rubber jacket case protect against bumps
• Nylon coated blade
• Fast rewinding design for more convenient operation
• Metric and inch scale | • Two-point contact for detection of geometry problems such as ovality and taper
• Carbide-tipped contact points for extended wear and improved abrasion resistance
• Includes all the necessary spacers, interchangeable extensions and ABS storage case | • Hammertone, baked enamel finished frame
• Ratchet stop |
| Content |
| Size (inch) |
Part Number |
| 4” |
MT0000079 |
| 6” |
MT0000082 |
| 8” |
MT0000085 |
| 10” |
MT0000088 |
| 12” |
MT0000091 |
| 15” |
MT0000094 |
| 18” |
MT0000097 |
| 24” |
MT0000100 |
| 36” |
MT0000103 |
|
| Mfr.PN |
Length (inch) |
Blade Size |
No. Blades |
Part Number |
| 236-1 |
4” |
0.02 -1.00mm |
17 |
MT0000049 |
| 236-2 |
4” |
0.0015" - 0.025" |
26 |
MT0000050 |
| 236-6 |
6” |
0.02 - 1.00mm |
17 |
MT0000051 |
| 236-8 |
8” |
0.02 - 1.00mm |
17 |
MT0000052 |
| 236-12 |
12” |
0.02 - 1.00mm |
17 |
MT0000053 |
|
| Mfr.PN |
Size (mm) |
Size (inch) |
Accuracy (mm) |
Part Number |
| 231-6 |
150 |
6” |
0.02 |
MT0000074 |
| 231-8 |
200 |
8” |
0.02 |
MT0000075 |
| 231-12 |
300 |
12” |
0.02 |
MT0000076 |
|
| Mfr. PN |
Size (Mtr) |
Blade Width (mm) |
Part Number |
| 202-3 |
3 |
16 |
MT0000001 |
| 202-5 |
5 |
25 |
MT0000002 |
| 202-7.5 |
7.5 |
25 |
MT0000003 |
| 202-10 |
10 |
25 |
MT0000004 |
| 202S-20 |
20 |
13 |
MT0000005 |
| 202S-30 |
30 |
13 |
MT0000006 |
| 202S-50 |
50 |
13 |
MT0000007 |
|
| Mfr.PN |
Size(mm) |
Graduation (mm) |
Part Number |
| 351-35 |
18-35 |
0.01 |
MT0000424 |
| 351-50 |
35-50 |
0.01 |
MT0000425 |
| 351-160 |
50-160 |
0.01 |
MT0000417 |
| 351-250 |
150-250 |
0.01 |
MT0000418 |
| 351-400 |
250-400 |
0.01 |
MT0000419 |
|
| Mfr.PN |
Size (mm) |
Accuracy (mm) |
Part Number |
| 232-25 |
0-25 |
±2μm |
MT0000109 |
| 232-50 |
25-50 |
±2μm |
MT0000110 |
| 232-75 |
50-75 |
±2μm |
MT0000111 |
| 232-100 |
75-100 |
±3μm |
MT0000112 |
| 232-125 |
100-125 |
±3μm |
MT0000113 |
| 232-150 |
125-150 |
±3μm |
MT0000416 |
| 232-175
|
150-175 |
±3μm |
MT0000429 |
| 232-200 |
175-200 |
±3μm |
MT0000430 |
|
