| Description | • Designed for monitoring and control of pressure
• Use in conjunction with direct gauge adapter | • Slim design allows tool to fit where a square drive tool can’t
• Simply connect hex links for quick and easy hex size changes
• 180/360 degree multi position hose couplers prevents hose interference on all jobs
• Made of highest quality materials (aluminum and steel alloys) for durability and longevity
• High precision ratchet for accuracy up to ± 3% | • The Hydraulic Gauges adopt a 304 stainless steel shell and copper screw joint, making the gauge sturdy and durable for long service life
• Widely used in construction, machinery, ships, mining, and other industries
• Comes with 10 different couplings, can be used for Caterpillar, Hitachi, Komatsu, Daewoo, Hyundai, Kato, Kawasaki
| • 180/360 degree multi position hose couplers prevents hose interference on all jobs
• Made of highest quality materials (aluminum and steel alloys) for durability and longevity
• High precision ratchet for accuracy up to ± 3% | • Comes with crimping dies 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
• 2 pieces spare battery
• 1 piece charger
• 1 set sealing element
• 1 piece plastic hard case | • 3 Digital Pressure Gauges. The fuel pressure test kit two units and precise graduations, the meters are accurate in measuring pressure. Maximum working pressure: 80Mpa/11603psi
• 20pcs Interchangeable Test Couplings suitable for many kinds of standard excavators
• Test hose is made of nylon (inner), aramid (middle) and polyurethane (outer) to withstand high pressure
• 304 stainless steel shell and copper screw joint, making the gauge sturdy and durable for long service life. This hydraulic gauge test kit contains corrosion resistance gauges and carbon steel couplings with high strength. ; effectively reduces the affection of vibration and pulsation |
| Content |
| Mfr.PN |
Size (mm) |
Connection Size |
Part Number |
| 382-M10x1.0 |
M10 x 1.0 |
M16 x 2.0 |
HY0000010 |
| 382-M10x1.25 |
M10 x 1.25 |
M16 x 2.0 |
HY0000011 |
| 382-M12x1.5 |
M12 x 1.5 |
M16 x 2.0 |
HY0000012 |
| 382-M14x1.5 |
M14 x 1.5 |
M16 x 2.0 |
HY0000013 |
| 382-M16x1.5 |
M16 x 1.5 |
M16 x 2.0 |
HY0000014 |
| 382A-1/8 |
1/8" BSP |
M16 x 2.0 |
HY0000015 |
| 382A-1/4 |
1/4" BSP |
M16 x 2.0 |
HY0000016 |
| 382A-3/8 |
3/8" BSP |
M16 x 2.0 |
HY0000017 |
| 382A-7/16 |
7/16" BSP |
M16 x 2.0 |
HY0000018 |
| 382A-9/16 |
9/16" BSP |
M16 x 2.0 |
HY0000019 |
|
| Mfr.PN |
Nut Size (mm) |
Nut Size (in) |
Torque Range (Nm) |
Part Number |
| 383-2 |
24-60 |
1" - 2.375" |
232-2414 |
HY0000030 |
| 383-4 |
36-80 |
1.4375" - 3.125" |
585-6474 |
HY0000031 |
| 383-8 |
50-100 |
2" - 3.875" |
1094-11774 |
HY0000032 |
| 383-14 |
70-120 |
2.75" - 4.625" |
1558-26958 |
HY0000033 |
| 383-20 |
65-130 |
2.75" - 6" |
2695-26958 |
HY0000034 |
| 383-30 |
85-165 |
3.125" - 7.625" |
488-44593 |
HY0000035 |
| 383-50 |
105-225 |
4.13" - 8.85" |
7081-70813 |
HY0000036 |
|
| Mfr.PN |
Pressure Range (Bar) |
Part Number |
| 402 |
100,250,400,600 |
HY0000040 |
|
| Mfr.PN |
Sq. Drive (in) |
Torque Range (Nm) |
Part Number |
| 375-7 |
3/4" |
112-1120 |
HY0000020 |
| 375-1 |
3/4" |
183-1837 |
HY0000021 |
| 375-3 |
1" |
451-4512 |
HY0000022 |
| 375-5 |
1.1/2" |
752-7528 |
HY0000023 |
| 375-8 |
1.1/2" |
1078-10780 |
HY0000024 |
| 375-10 |
1.1/2" |
1551-15516 |
HY0000025 |
| 375-15 |
2.1/2" |
2062- 20627 |
HY0000026 |
| 375-20 |
2.1/2" |
2666- 26664 |
HY0000027 |
| 375-25 |
2.1/2" |
3572- 34725 |
HY0000028 |
| 375-35 |
2.1/2" |
4866-48666 |
HY0000029 |
|
| Mfr.PN |
Crimping Force (KN) |
Crimping Range (nm2) |
Stroke
(nm) |
Voltage
(V) |
Capacity
(Ah) |
Charging Time |
Part Number |
| 380-400 |
120 |
16-400 |
42 |
18 |
4.0 |
2 Hours |
HY0000009 |
|
| Mfr.PN |
Content |
Part Number |
|
490 |

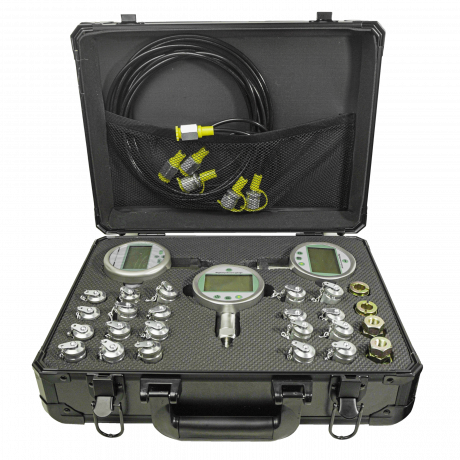

• 3 Digital Pressure Gauges:
Max 11603PSI/80Mpa
• 20pcs Interchangeable Test Couplings:
UNF5/16 • UNF7/16 • UNF7/16 • UNF9/16 •
ZG1/8 • ZG1/4 • NPT1/8 • UNF1/2 • M10*1 •
G1/4 • G1/4 • G1/8 • G1/8 • G3/8 • NPT1/4 •
M8*1 • M10*1.25 • M12*1.25 • M14*1.5 • M16*1.5
• 2,05 Meter Long Test Hose
|
MT0000447 |
|
