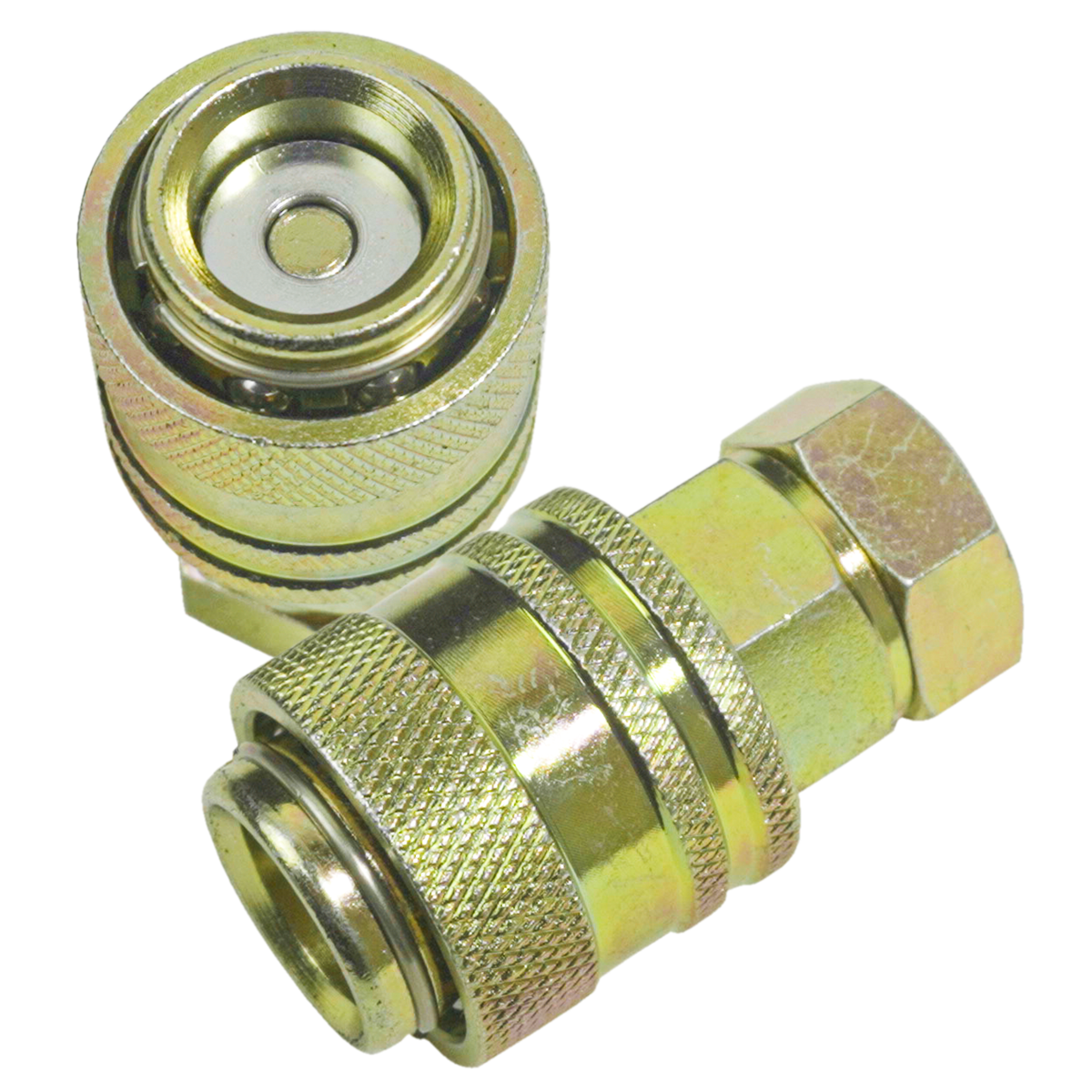

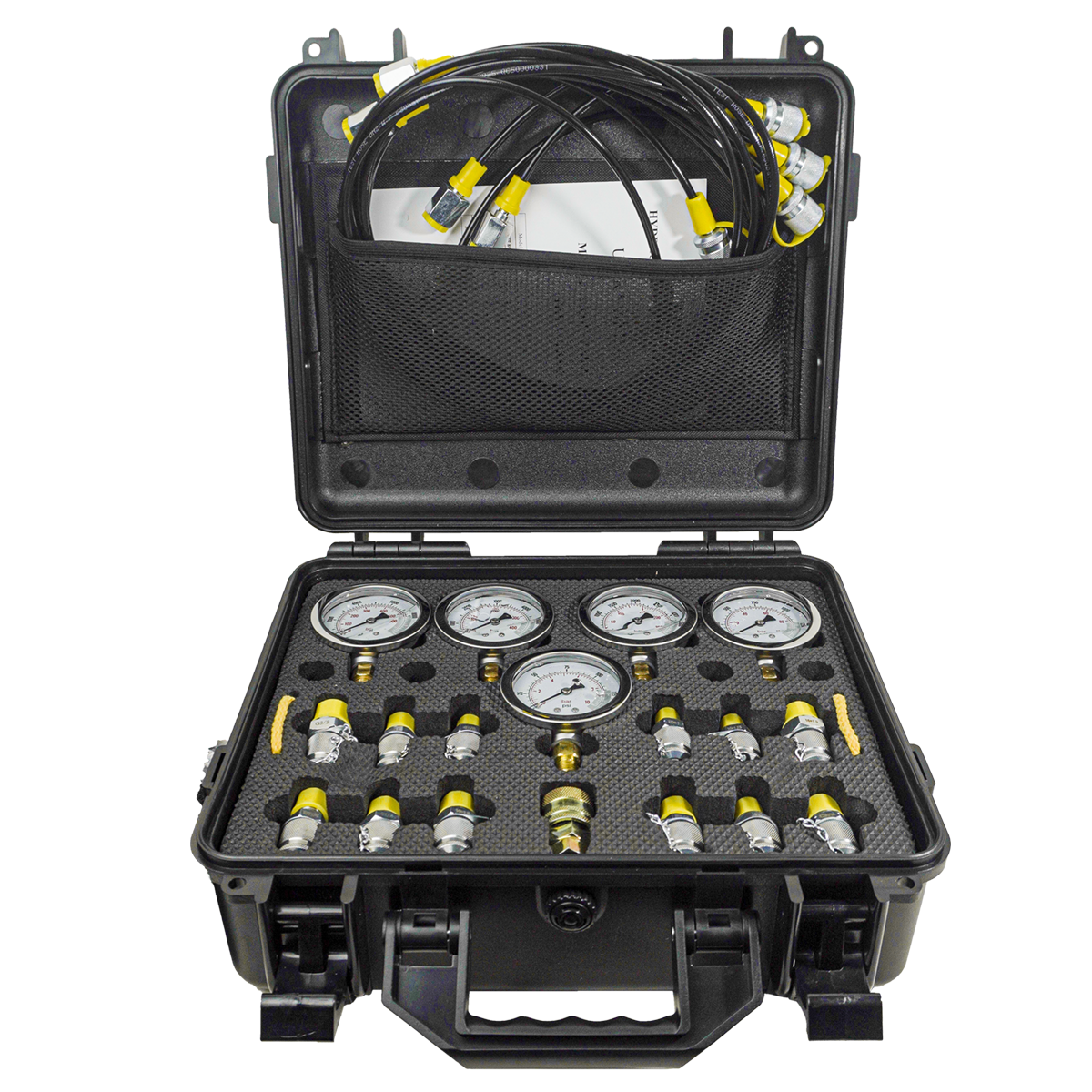

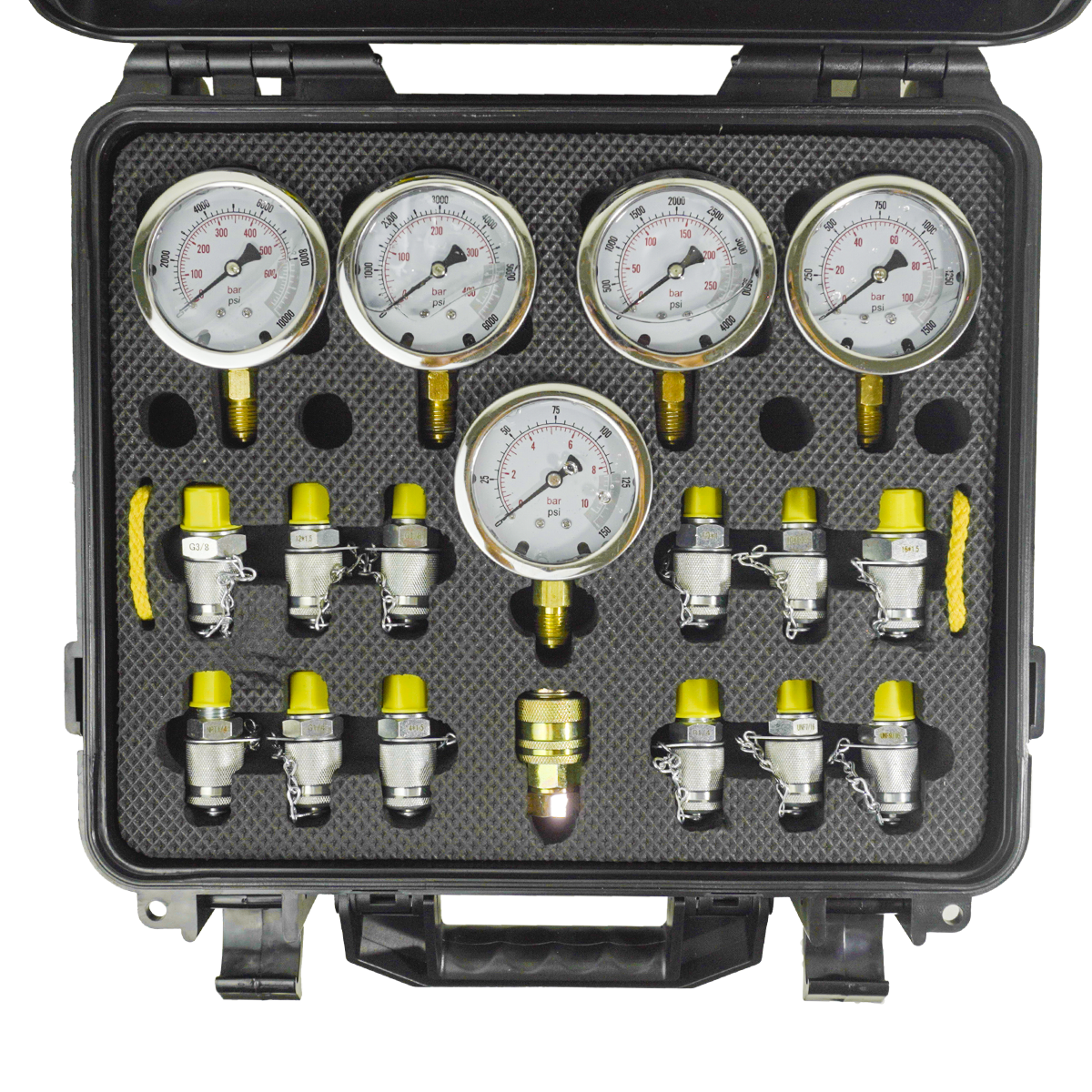

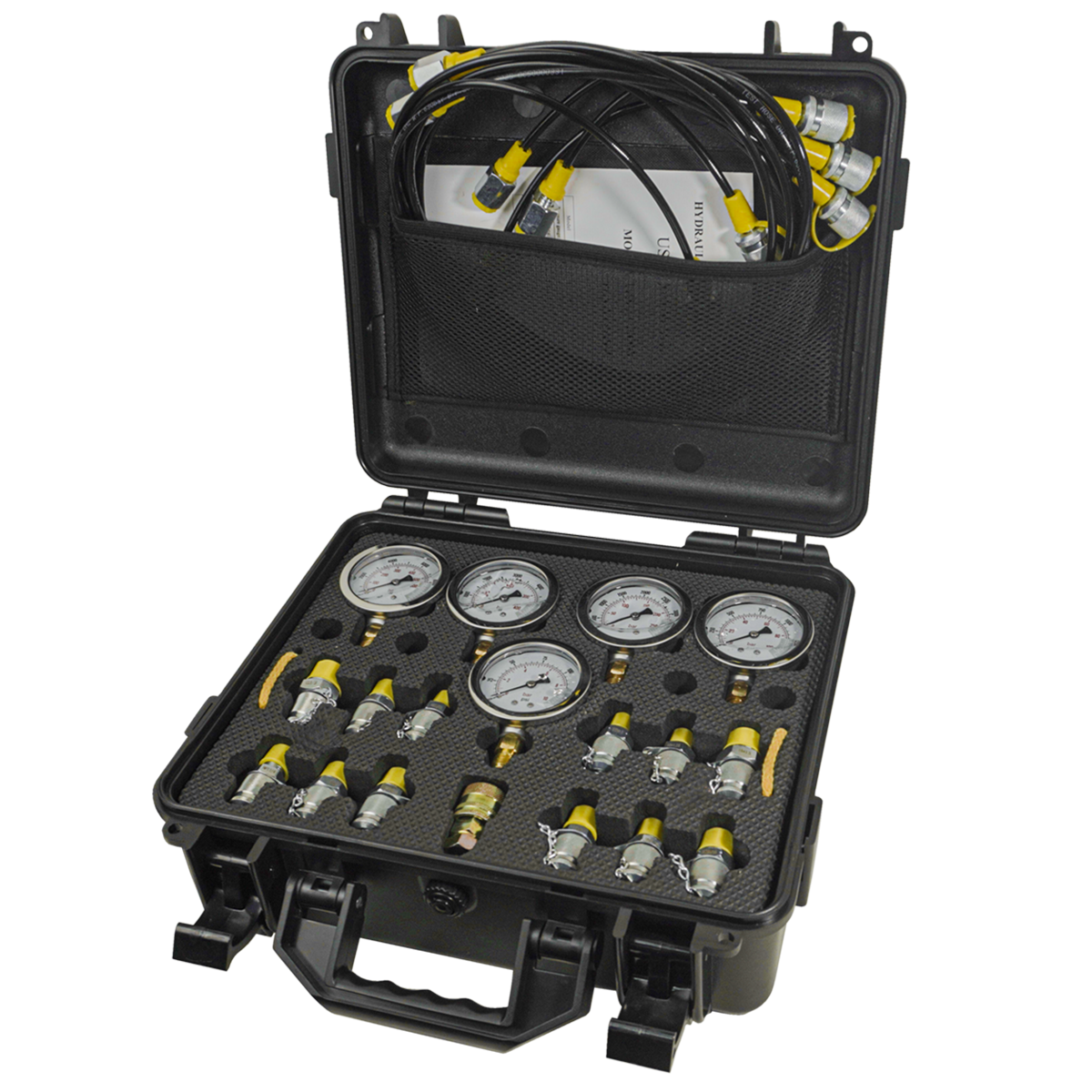

| Description | • Includes 5 Hydraulic Test Gauges, 12 Test Couplings, 14 Tee Connectors, 1 Carter Quick Connector, 5 Test Hoses, and a Portable Storage Case
• 304 stainless steel casing and copper threaded joints, this hydraulic pressure gauge resists rust, shock, water, dust, and corrosion, ensuring long-lasting durability. The gauge is filled with high-grade glycerin, which maintains clarity and transparency, withstands extreme temperatures, and effectively reduces vibrations and pulsations | • The tool has a double speed action: a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for crimping
• For easy and comfort operation, the tool head can rotate 180°
• The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the pressure release system can easily be operated at any stage of compression
• With interchangeable dies and safety system inside | • Quick operation, super light, durable
• Crimp head can be rotated for adjustable directions
• Long comfortable ergonomic cushioned handle makes it easy to hold and use | • Quick operation, super light, durable
• Crimp head can be rotated for adjustable directions
• Long comfortable ergonomic cushioned handle makes it easy to hold and use | • Designed for monitoring and control of pressure
• Use in conjunction with direct gauge adapter | • Use with pressure gauge |
| Content |
| Mfr.PN |
Content |
Part Number |
|
491 |

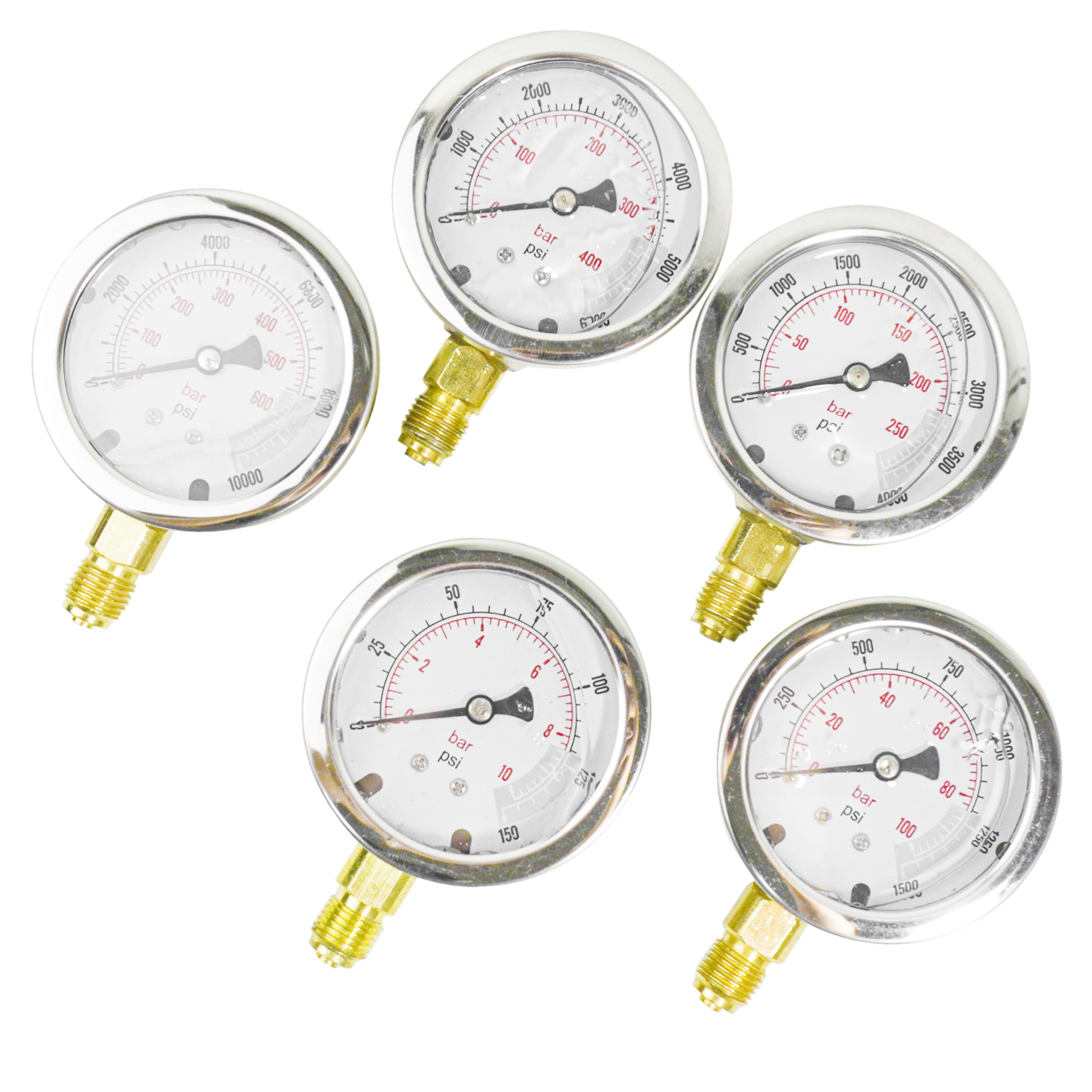

5 Hydraulic Gauges
(0-10 bar / 150 PSI; 0-100 bar /
1500 PSI; 0-250 bar / 4000 PSI; 0-400 bar /
6000 PSI; 0-600 bar / 10000 PSI) |
MT0000448 |
|
| Mfr.PN |
Crimping Range |
Crimping Dies |
Stroke |
Crimp Type |
Part Number |
| 452-400C |
16-400mm2 |
50, 70, 95, 120, 150
185, 240, 300, 400mm2 |
32mm |
Hexagon |
HY0000006 |
|
| Mfr.PN |
Crimping Range |
Crimping Dies |
Stroke |
Crimp Type |
Part Number |
| 452-70 |
4-70mm2 |
4, 6, 10, 16, 25, 35, 50, 70mm2 |
12mm |
Hexagon |
HY0000001 |
|
| Mfr.PN |
Crimping Range |
Crimping Dies |
Stroke |
Crimp Type |
Part Number |
| 452-240 |
16-240mm2 |
16, 25, 35, 50,70, 95,
120, 150, 185, 240mm2 |
20mm |
Hexagon |
HY0000003 |
|

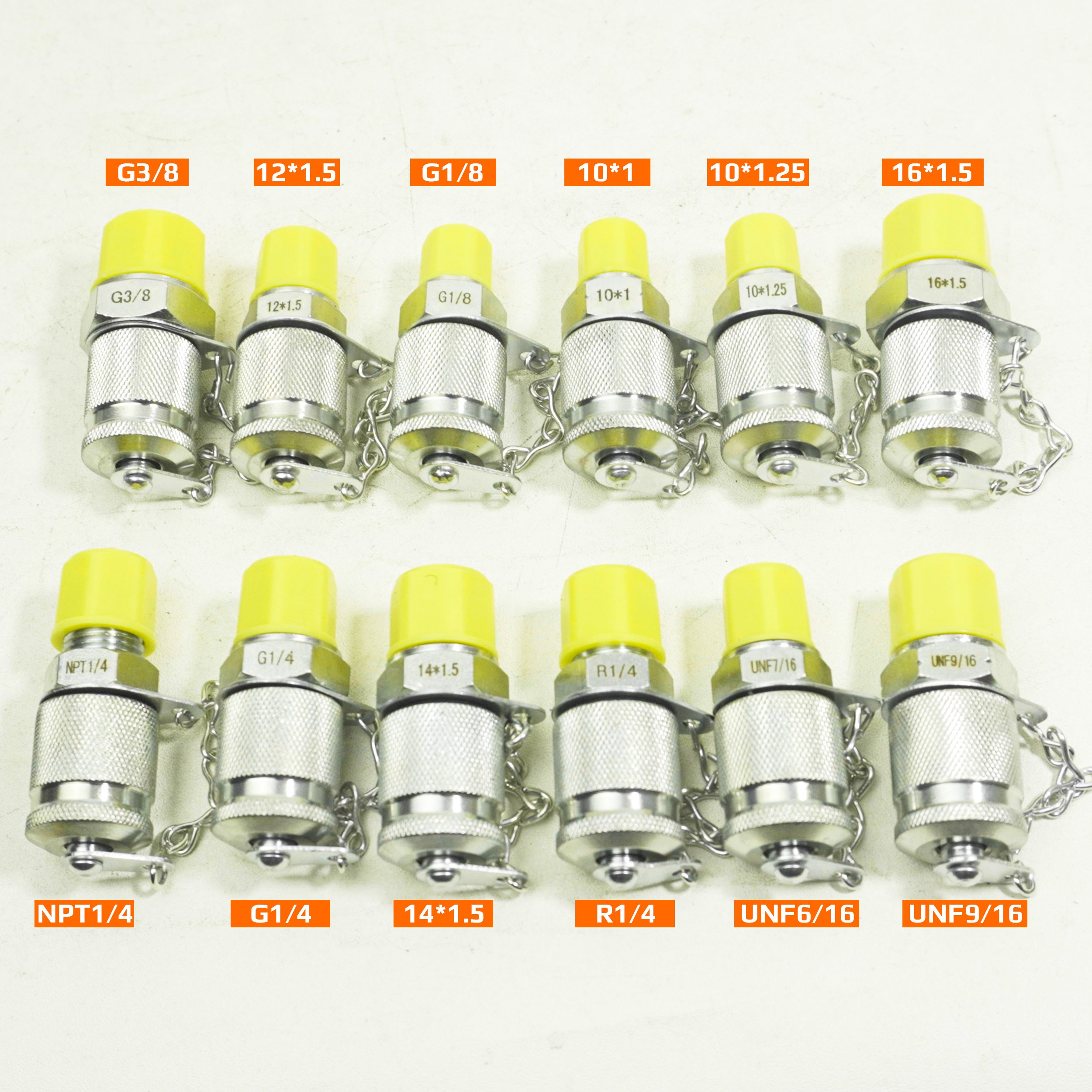

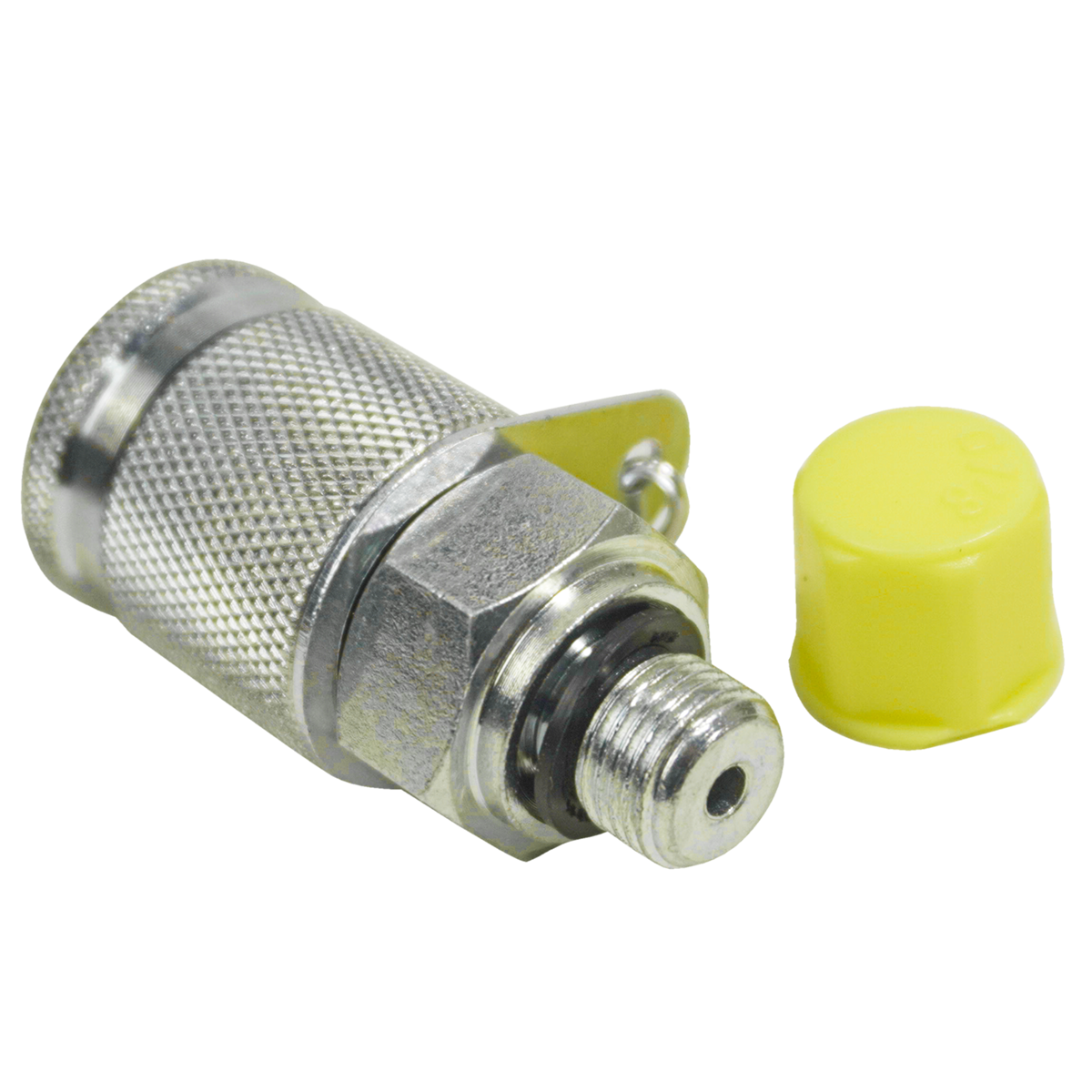

| Mfr.PN |
Size (mm) |
Connection Size |
Part Number |
| 382-M10x1.0 |
M10 x 1.0 |
M16 x 2.0 |
HY0000010 |
| 382-M10x1.25 |
M10 x 1.25 |
M16 x 2.0 |
HY0000011 |
| 382-M12x1.5 |
M12 x 1.5 |
M16 x 2.0 |
HY0000012 |
| 382-M14x1.5 |
M14 x 1.5 |
M16 x 2.0 |
HY0000013 |
| 382-M16x1.5 |
M16 x 1.5 |
M16 x 2.0 |
HY0000014 |
| 382A-1/8 |
1/8" BSP |
M16 x 2.0 |
HY0000015 |
| 382A-1/4 |
1/4" BSP |
M16 x 2.0 |
HY0000016 |
| 382A-3/8 |
3/8" BSP |
M16 x 2.0 |
HY0000017 |
| 382A-7/16 |
7/16" BSP |
M16 x 2.0 |
HY0000018 |
| 382A-9/16 |
9/16" BSP |
M16 x 2.0 |
HY0000019 |
|

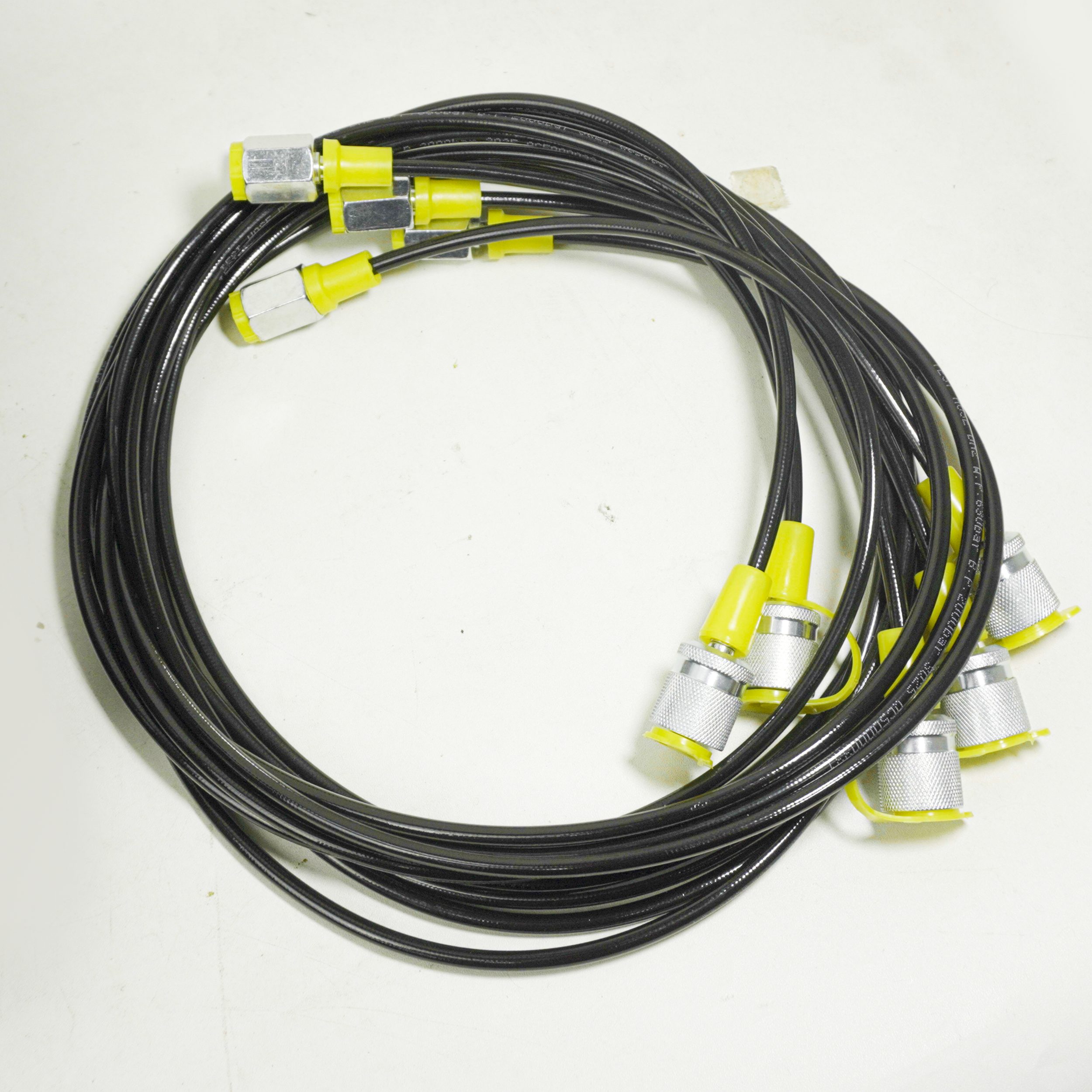

| Mfr.PN |
Port Size |
Length (mtr) |
Part Number |
| 324-3 |
M16 X 2.0 - 1/4"G |
3 |
MT0000409 |
| 324-5 |
M16 X 2.0 - 1/4"G |
5 |
MT0000410 |
| 324-10 |
M16 X 2.0 - 1/4"G |
10 |
MT0000411 |
|
