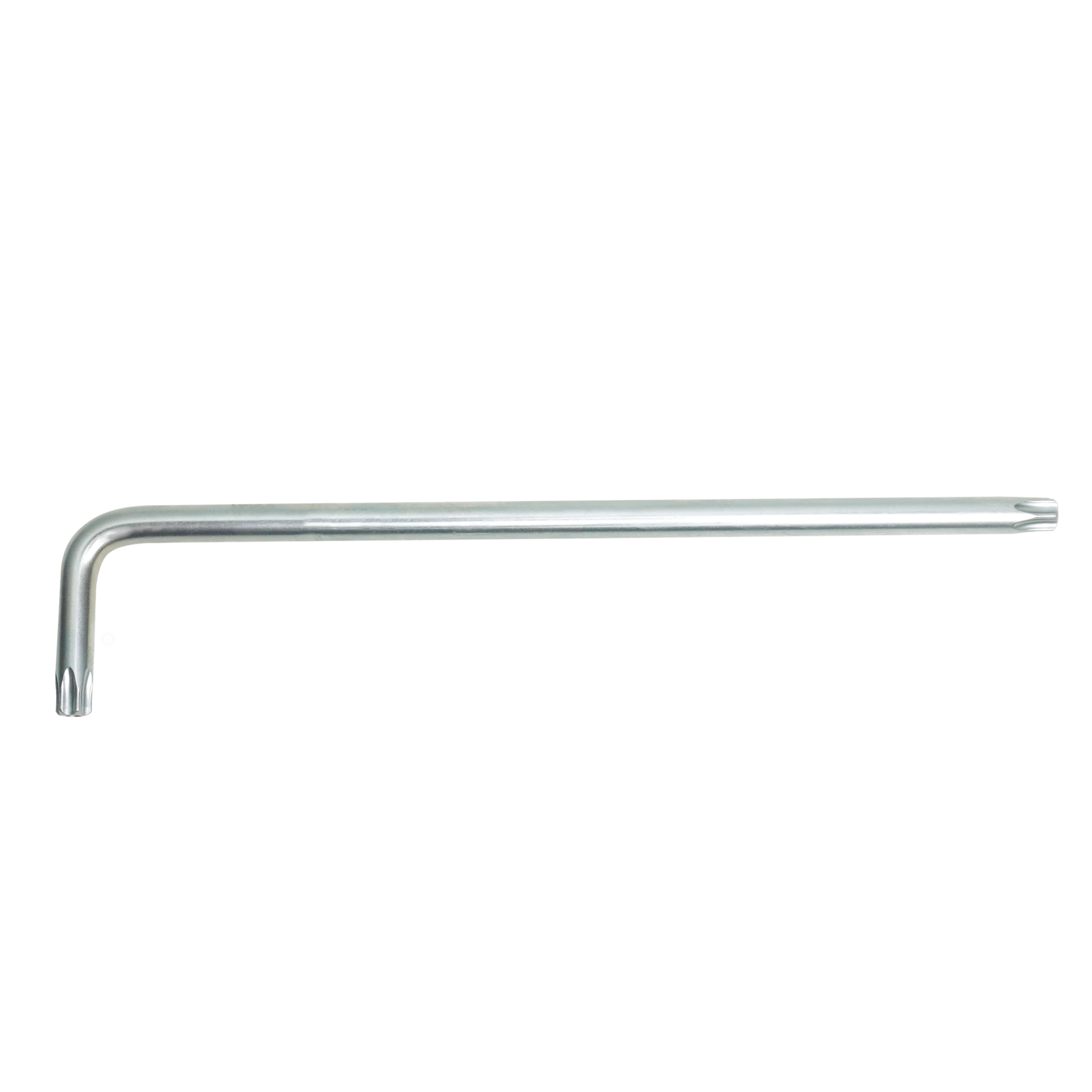

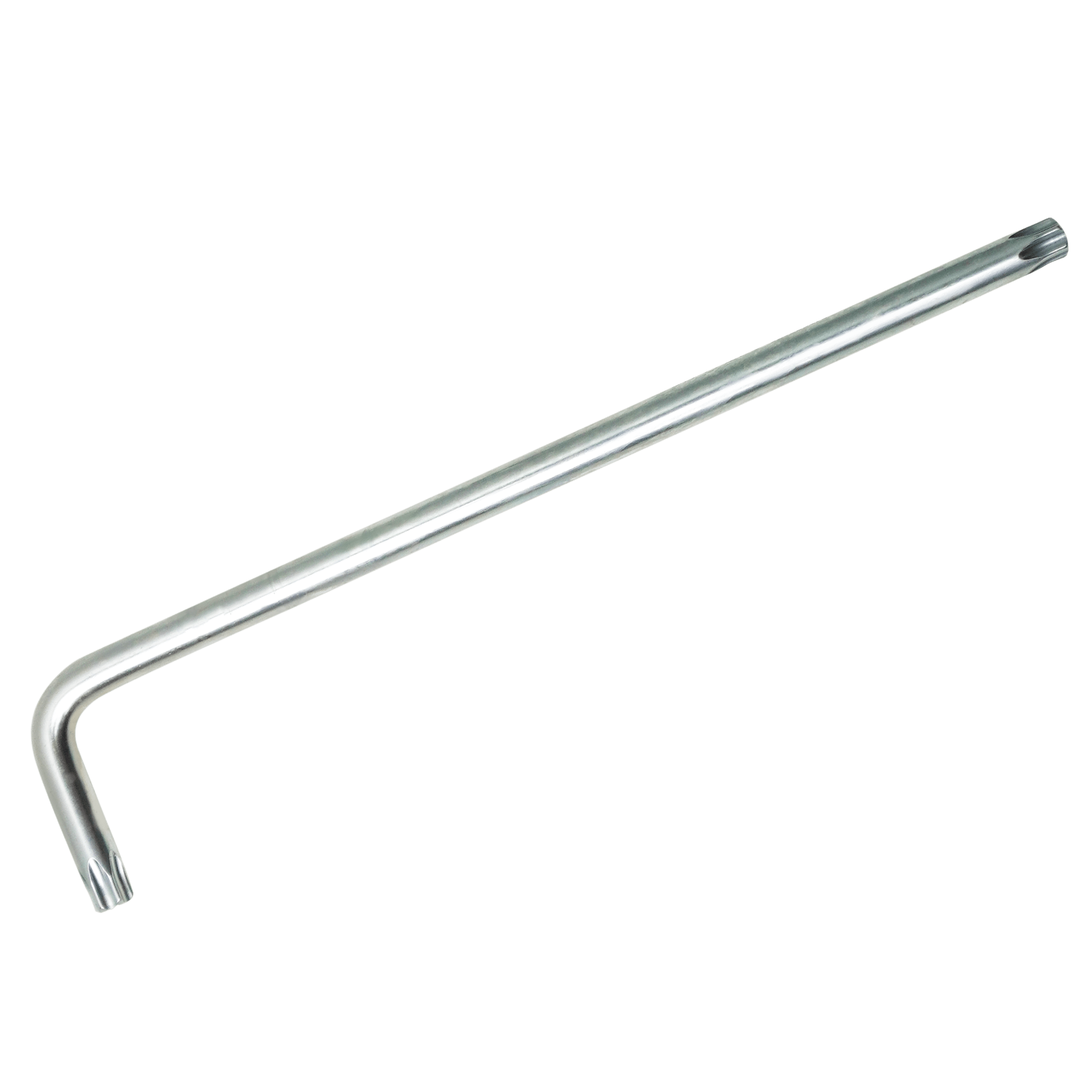

| Description | • Suitable for inside TORX screws – without hole on the tip
• High torque ability and impact resistance suitable for heavy duty use
• Material: 59 CrMoV 4
• Standard: Conforms to DIN 911/ISO 2936 | • For use with air or electric power tools
• Standard: Conforms to DIN 3129/ISO 2725, DIN 3121/ISO 1174
• Hardened & tempered to 40-45 HRC
• Material: Chrome Molybdenum Steel | • For use with air or electric power tools
• Standard: Conforms to DIN 3129/ISO 2725, DIN 3121/ISO 1174
• Hardened & tempered to 40-45 HRC
• Material: Chrome Molybdenum Steel | • Material: 31 CrV 3 Chrome Vanadium Steel
• Standard: Conforms to DIN 3122, form F/ISO 3315 | • For use with air or electric power tools
• Standard: Conforms to DIN 3129/ISO 2725, DIN 3121/ISO 1174
• Hardened & tempered to 40-45 HRC
• Material: Chrome Molybdenum Steel | • High strength Chrome Molybdenum
• Suitable for use with pneumatic and electric impact wrenches
• Manufactured to DIN standards |
| Content |
| Mfr.PN |
Size |
L1(mm) |
L2(mm) |
Part Number |
| 109TX-10 |
T10 |
21.0 |
49.0 |
HT0001189 |
| 109TX-15 |
T15 |
23.5 |
57.0 |
HT0001190 |
| 109TX-20 |
T20 |
27.0 |
63.0 |
HT0001191 |
| 109TX-25 |
T25 |
30.5 |
70.0 |
HT0001192 |
| 109TX-27 |
T27 |
31.0 |
77.0 |
HT0001193 |
| 109TX-30 |
T30 |
37.0 |
86.0 |
HT0001194 |
| 109TX-40 |
T40 |
41.0 |
98.0 |
HT0001195 |
| 109TX-45 |
T45 |
47.0 |
110.0 |
HT0001196 |
| 109TX-50 |
T50 |
49.0 |
125.0 |
HT0001197 |
|
| Mfr.PN |
Size(mm) |
Length(mm) |
Part Number |
| 171-14 |
14 |
100 |
HT0002262 |
| 171-17 |
17 |
100 |
HT0002263 |
| 171-19 |
19 |
100 |
HT0002264 |
| 171-22 |
22 |
100 |
HT0002265 |
| 171-24 |
24 |
100 |
HT0002266 |
| 171-27 |
27 |
100 |
HT0002267 |
| 171-30 |
30 |
100 |
HT0002268 |
| 171-32 |
32 |
100 |
HT0002269 |
|
| Mfr.PN |
Size(mm) |
Length(mm) |
Part Number |
| 167-12 |
12 |
89 |
HT0002155 |
| 167-14 |
14 |
89 |
HT0002156 |
| 167-17 |
17 |
89 |
HT0002157 |
| 167-19 |
19 |
89 |
HT0002158 |
| 167-22 |
22 |
89 |
HT0002159 |
| 167-24 |
24 |
89 |
HT0002160 |
| 167-27 |
27 |
100 |
HT0003516 |
|
| Mfr.PN |
Length(mm) |
Part Number |

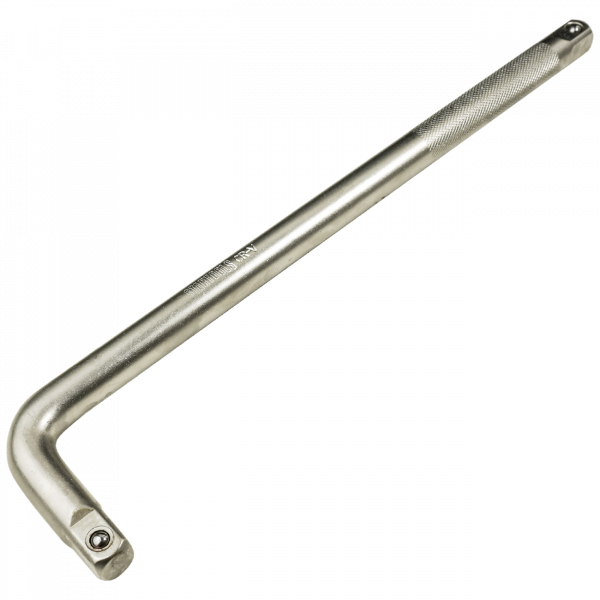

| 123FH |
250 |
HT0001487 |
|
| Mfr.PN |
Size |
Length(mm) |
Part Number |
| 163TX-20 |
T20 |
78 |
HT0002013 |
| 163TX-25 |
T25 |
78 |
HT0002014 |
| 163TX-27 |
T27 |
78 |
HT0002015 |
| 163TX-30 |
T30 |
78 |
HT0002016 |
| 163TX-40 |
T40 |
78 |
HT0002017 |
| 163TX-45 |
T45 |
78 |
HT0002018 |
| 163TX-50 |
T50 |
78 |
HT0002019 |
| 163TX-55 |
T55 |
78 |
HT0002020 |
| 163TX-60 |
T60 |
78 |
HT0002021 |
| 163-TX70 |
T70 |
78 |
HT0003638 |
| 163-TX80 |
T80 |
78 |
HT0003639 |
| 163-TX90 |
T90 |
78 |
HT0003640 |
| 163-TX100 |
T100 |
78 |
HT0003641 |
|
| Mfr.PN |
Size(mm) |
Length(mm) |
Part Number |
| 356-21x41 |
21x41 |
90 |
HT0003517 |
|
