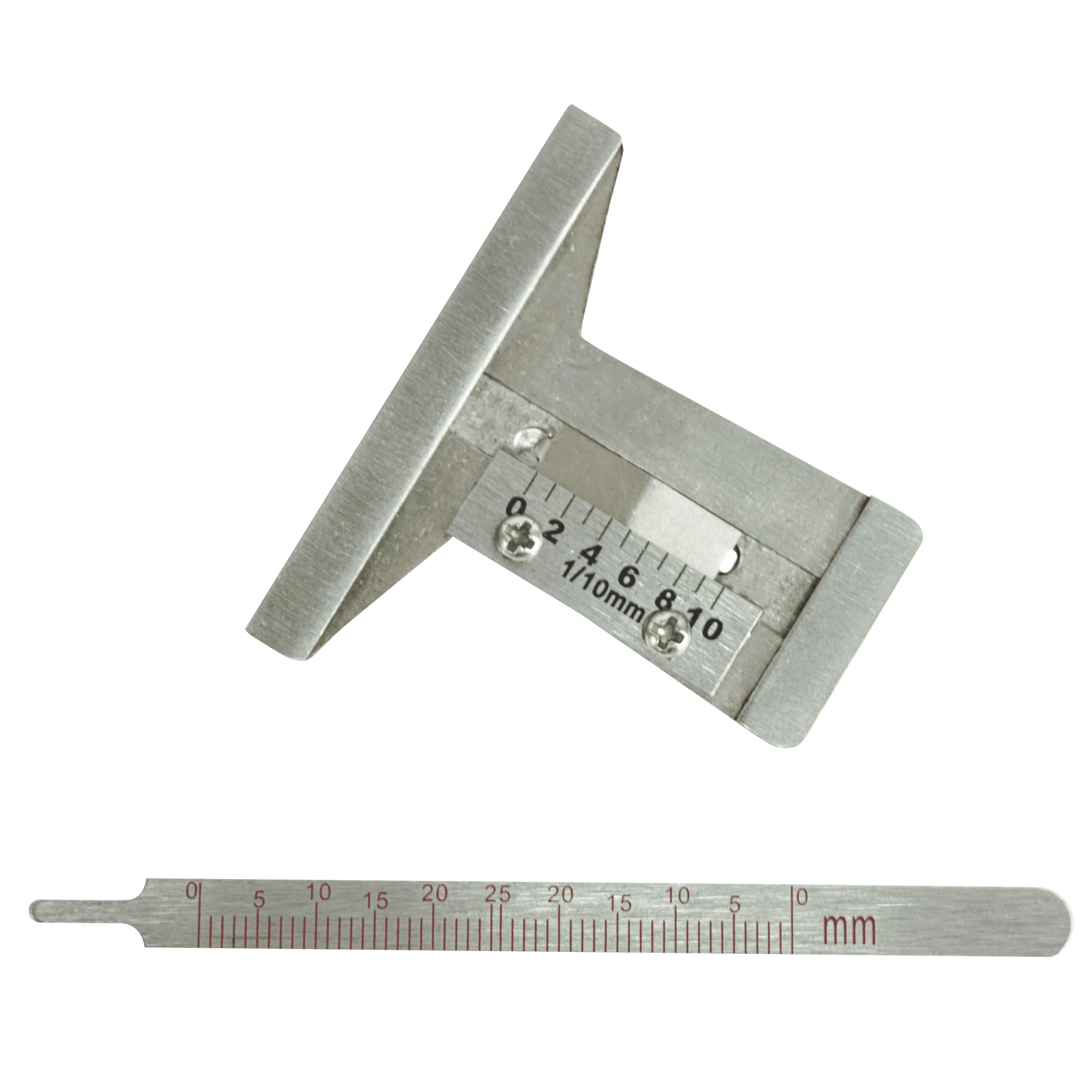

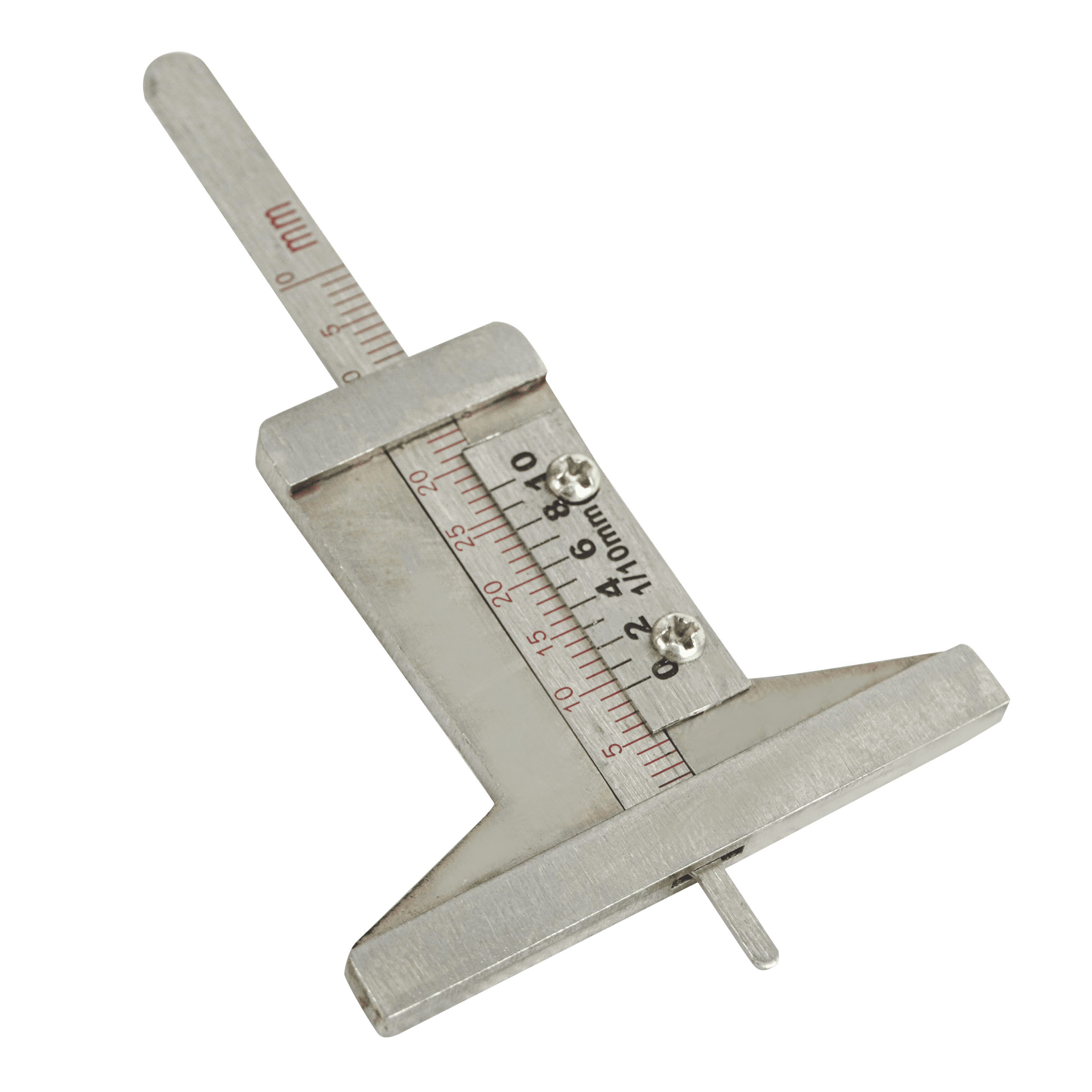

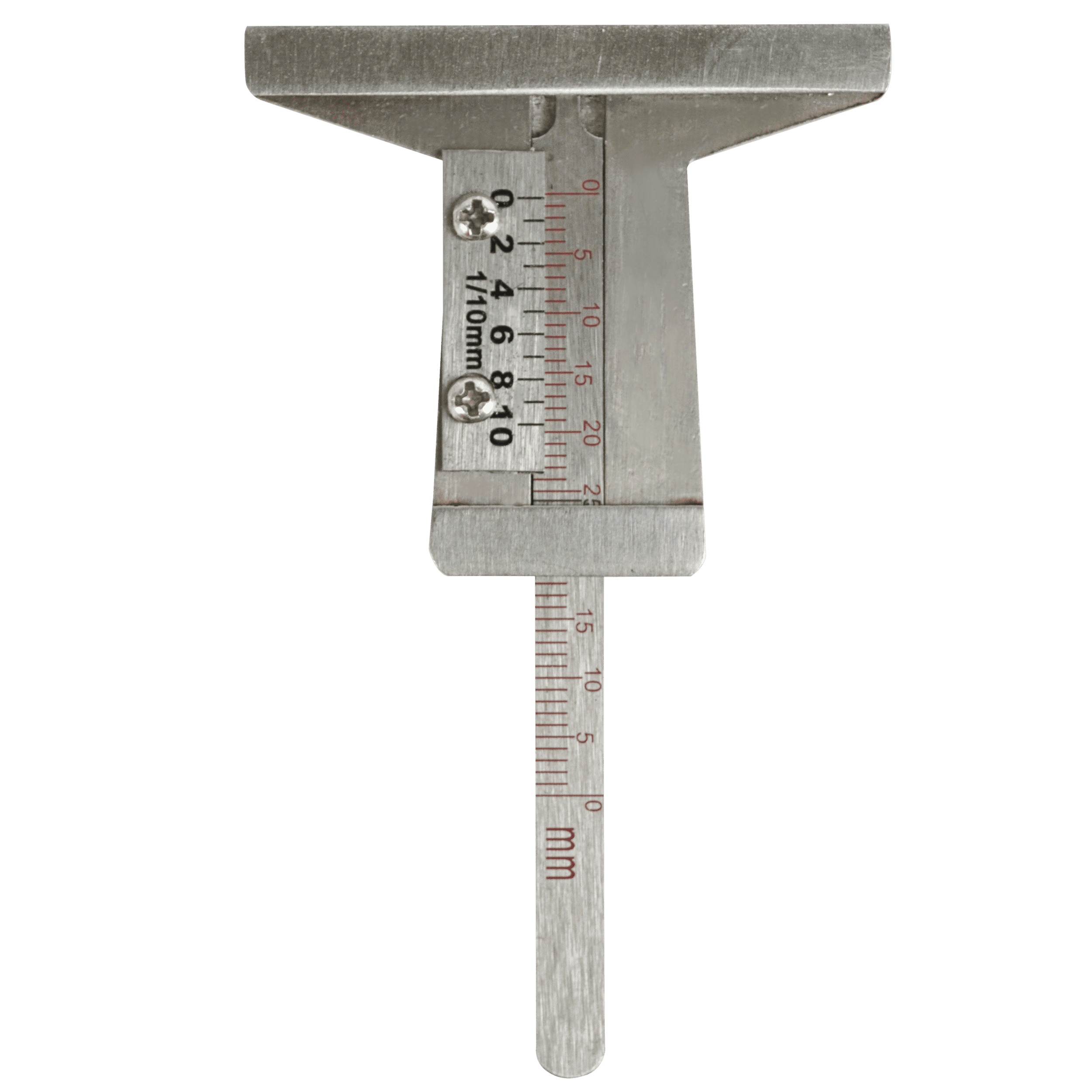

| Description | • A simple and effective method for tire tread depth detection is provided
• Polished, bright and clean without burr, anti-rust engraved line and will not rub off
• The pocket size easy to carry | • Two-point contact for detection of geometry problems such as ovality and taper
• Carbide-tipped contact points for extended wear and improved abrasion resistance
• Includes all the necessary spacers, interchangeable extensions and ABS storage case | • Rubber jacket case protect against bumps
• Nylon coated blade
• Fast rewinding design for more convenient operation
• Metric and inch scale | • Machined aluminum frame for accurate readings, solid block acrylic vials resist breaking or deformation
• 3 standard bubble vials, meets the needs of a multi-angle accurate measuring tool | • Hammertone, baked enamel finished frame
• Ratchet stop | • Dual display two units of Kilogram & Newton, no unit conversion
• Switch freely between load peak (PEAK) test and continuous load value (TRACK) test
• Hand-held use or can be mounted on all types of work bench
|
| Content |
| Mfr.PN |
Measuring range (mm) |
Accuracy (mm) |
Part Number |
| 336 |
0-100 |
0.1 |
WE0000223 |
|
| Mfr.PN |
Size(mm) |
Graduation (mm) |
Part Number |
| 351-35 |
18-35 |
0.01 |
MT0000424 |
| 351-50 |
35-50 |
0.01 |
MT0000425 |
| 351-160 |
50-160 |
0.01 |
MT0000417 |
| 351-250 |
150-250 |
0.01 |
MT0000418 |
| 351-400 |
250-400 |
0.01 |
MT0000419 |
|
| Mfr. PN |
Size (Mtr) |
Blade Width (mm) |
Part Number |
| 202-3 |
3 |
16 |
MT0000001 |
| 202-5 |
5 |
19 |
MT0000002 |
| 202-7.5 |
7.5 |
25 |
MT0000003 |
| 202-10 |
10 |
25 |
MT0000004 |
| 202S-20 |
20 |
13 |
MT0000005 |
| 202S-30 |
30 |
13 |
MT0000006 |
| 202S-50 |
50 |
13 |
MT0000007 |
|
| Mfr.PN |
Size (inch) |
Size (mm) |
Part Number |
| 424-12 |
12” |
300 |
MT0000385 |
| 424-16 |
16" |
400 |
MT0000436 |
| 424-20 |
20“ |
500 |
MT0000431 |
| 424-24 |
24” |
600 |
MT0000389 |
| 424-32 |
32" |
800 |
MT0000437 |
| 424-40 |
40" |
1000 |
MT0000438 |
|
| Mfr.PN |
Size (mm) |
Part Number |
| 232S-150 |
0-150 |
MT0000435 |
|
| Mfr.PN |
Max Load (N) |
Max Load (Kg) |
Load Graduation (N) |
Load Graduation (Kg) |
Part Number |
| 398-50 |
500 |
50 |
2.5 |
500 |
MT0000421 |
|
