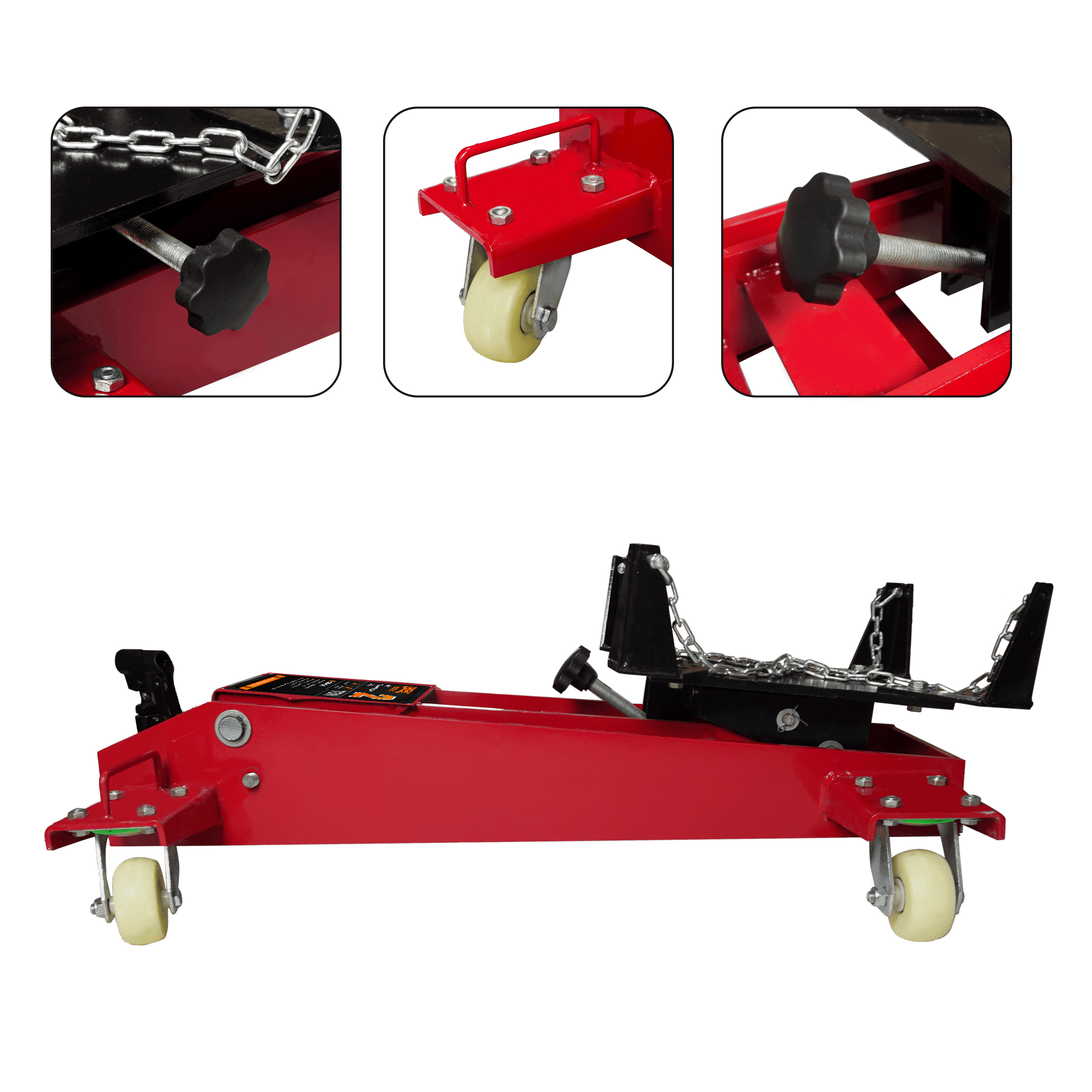

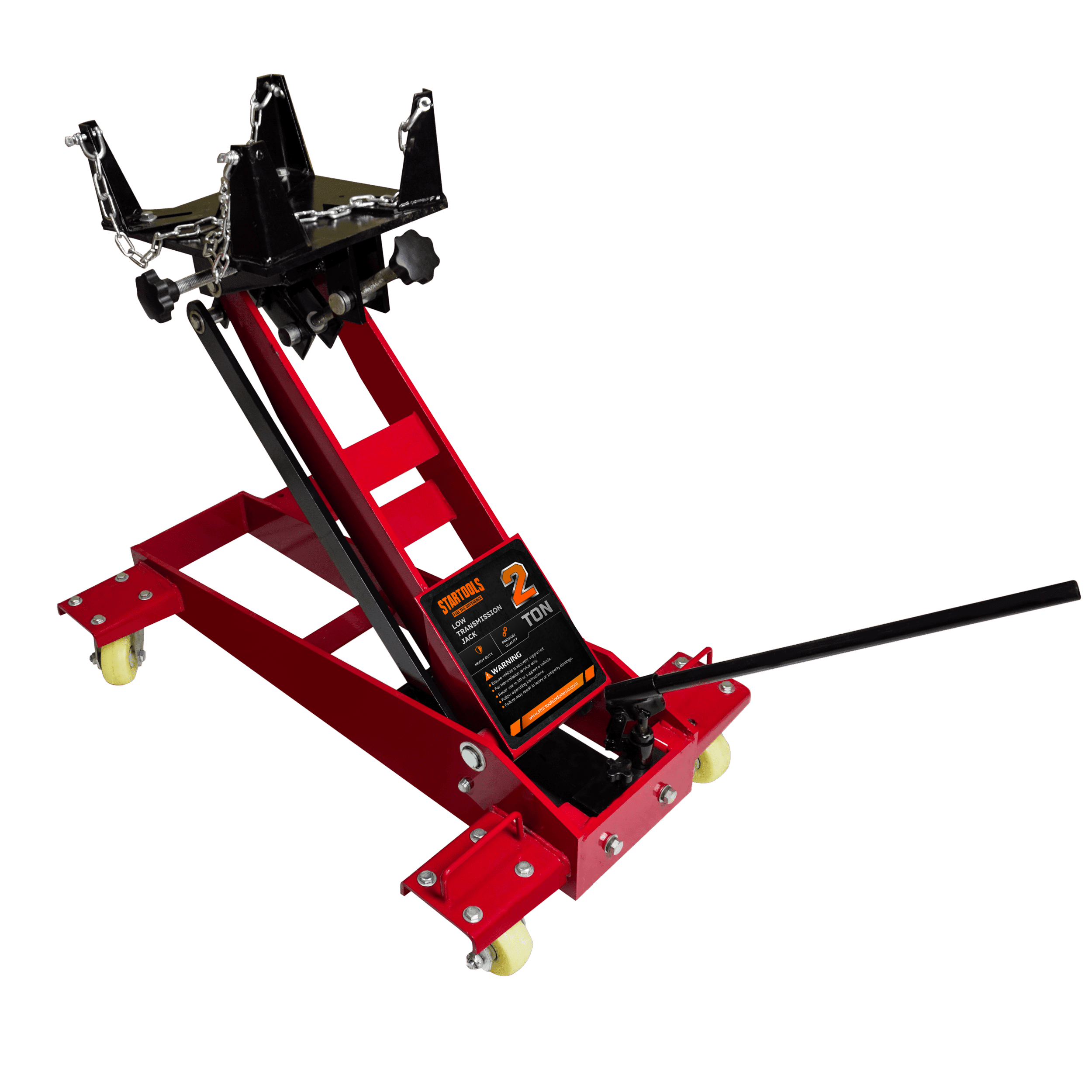

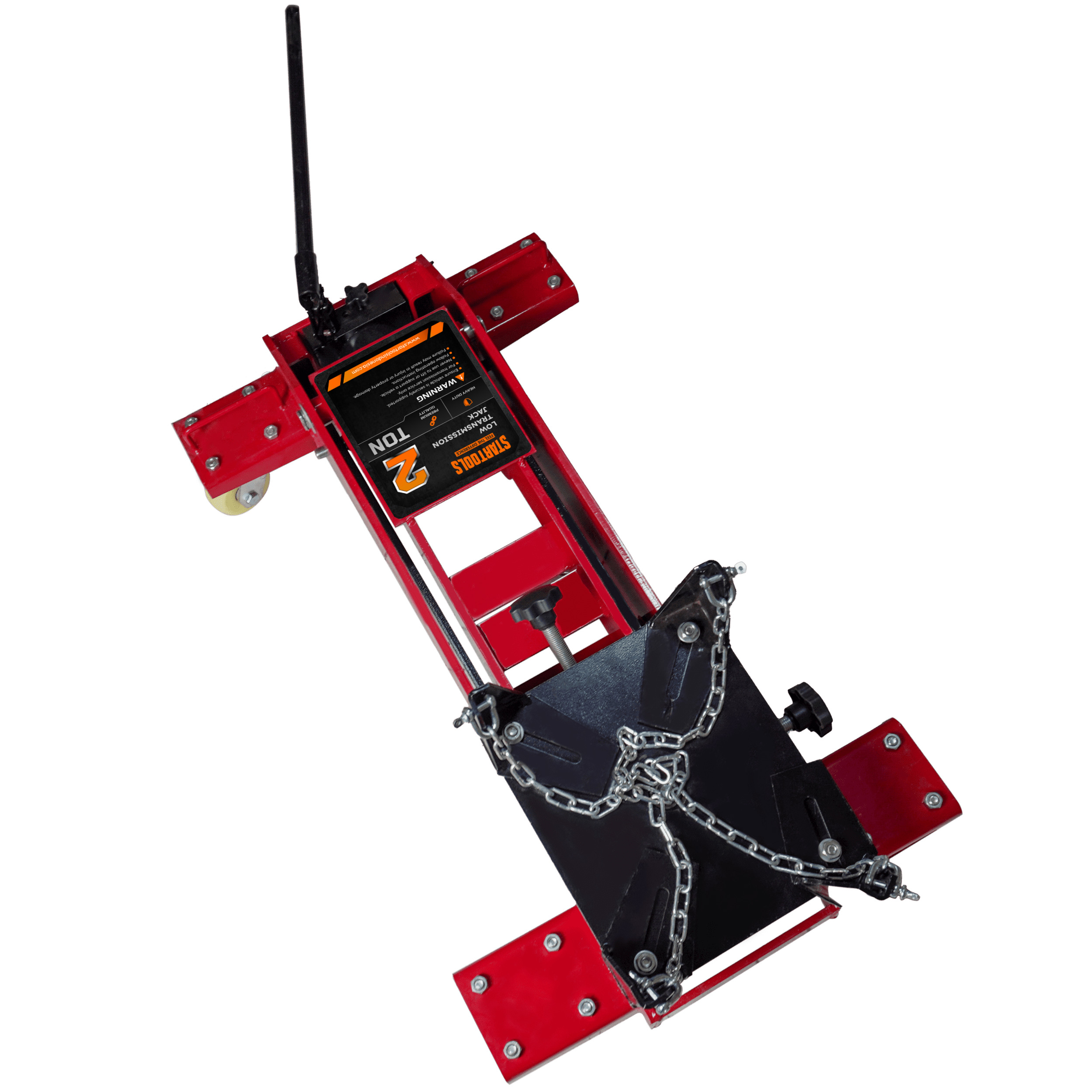

| Description | • Use for the removal, installation and moving of heavy duty diesel truck transmissions
• Universal adjustable saddle with four brackets that can be lined up with transmission pan configurations. | • Pumps motor oil, gear oil and transmission fluids
• Also measures amount pumped | • Used for filling or topping-up engine, gearbox, differential | • Cast iron construction | • Air powered
• Super tough steel frame construction
• Designed for lifting heavy duty jobs i.e trucks, bus fleets
• Comes with 2 piece jack extension size: 45mm and 75mm | • Built in safety valve to prevent overload Super tough steel frame construction
• Designed for lifting heavy duty jobs i.e trucks, bus fleets |
| Content |
| Mfr.PN |
Capacity (T) |
Part Number |
| 227-1 |
1 |
WE0000176 |
| 227-2 |
2 |
WE0000177 |
|
| Mfr.PN |
Size |
Part Number |
| 379-3/4 |
3/4" |
WE0000230 |
|
| Mfr.Pn |
Size (liter) |
Part Number |
| 311-20 |
25 |
WE0000092 |
|
| Mfr.Pn |
Description |
Part Number |
| 313 |
Hand grease pump 500cc |
WE0000084 |
| 313H |
Flexible hose |
WE0000085 |
|
| Mfr.PN |
268-50 |
268-80 |
268-100 |
| Capacity (T) |
50/25 |
80/50 |
100/50 |
| No.Stage |
2 |
2 |
2 |
| Min. Height (mm) |
195 |
200 |
200 |
| Max. Height (mm) |
420 |
425 |
425 |
| A (mm) |
56 |
85 |
105 |
| B (mm) |
95 |
125 |
145 |
| C (mm) |
136 |
165 |
190 |
| D (mm) |
160 |
200 |
220 |
| E (mm) |
1250 |
1250 |
1335 |
| F (mm) |
60 |
60 |
40 |
| G (mm) |
40 |
40 |
60 |
| H (mm) |
95 |
90 |
90 |
| I (mm) |
95 |
90 |
90 |
| J (mm) |
190 |
205 |
205 |
| K (mm) |
180 |
180 |
180 |
| L (mm) |
530 |
620 |
870 |
| M (mm) |
370 |
370 |
- |
| N (mm) |
295 |
300 |
- |
| O (mm) |
670 |
700 |
- |
| Part Number |
WE0000170 |
WE0000171 |
WE0000172 |
|
| Mfr.PN |
Capacity (T) |
Min.H.(mm) |
Max.H.(mm) |
Part Number |
| 224-3 |
3 |
150 |
610 |
WE0000159 |
| 224-5 |
5 |
160 |
600 |
WE0000160 |
| 224-10 |
10 |
160 |
600 |
WE0000161 |
| 224-20 |
20 |
190 |
640 |
WE0000163 |
|
