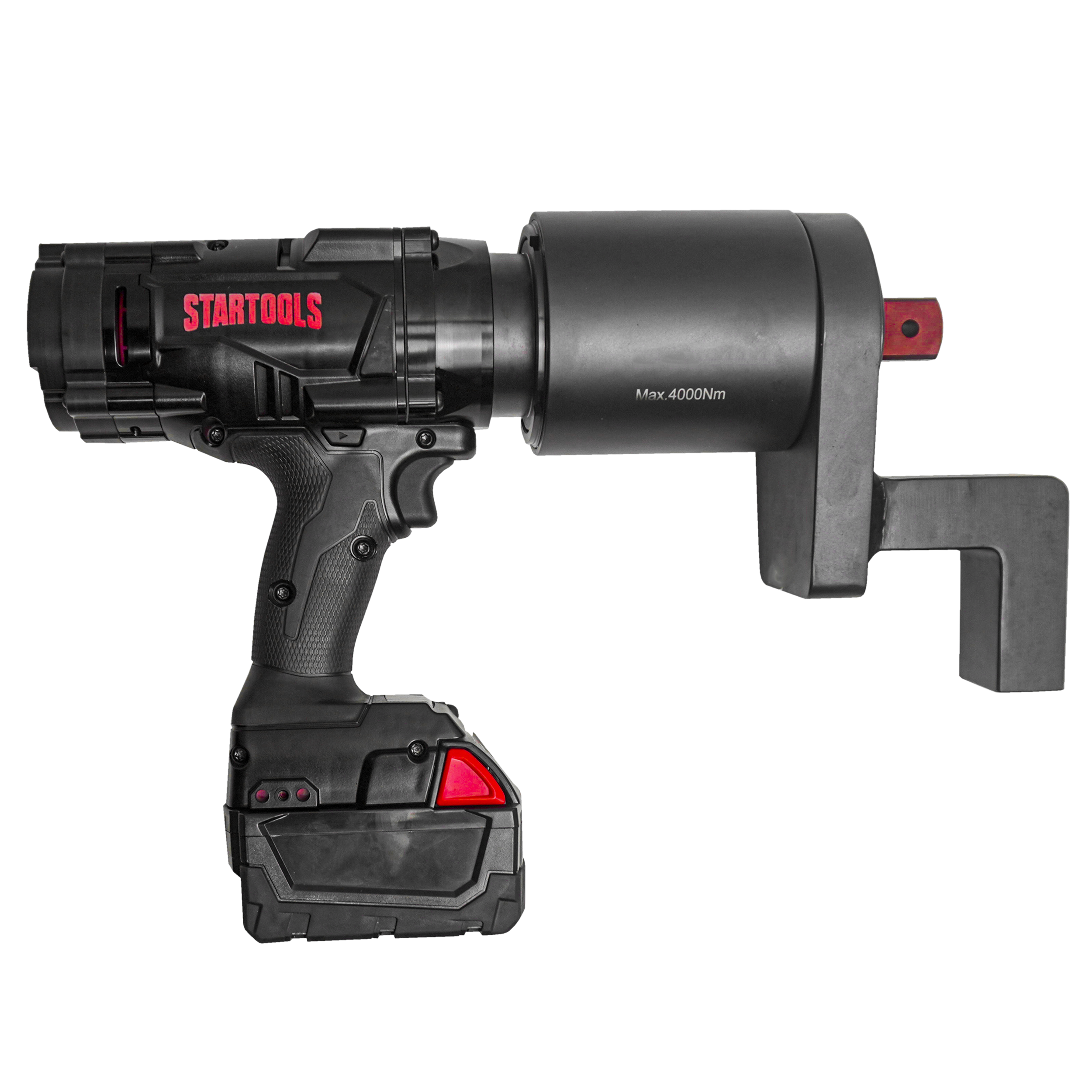

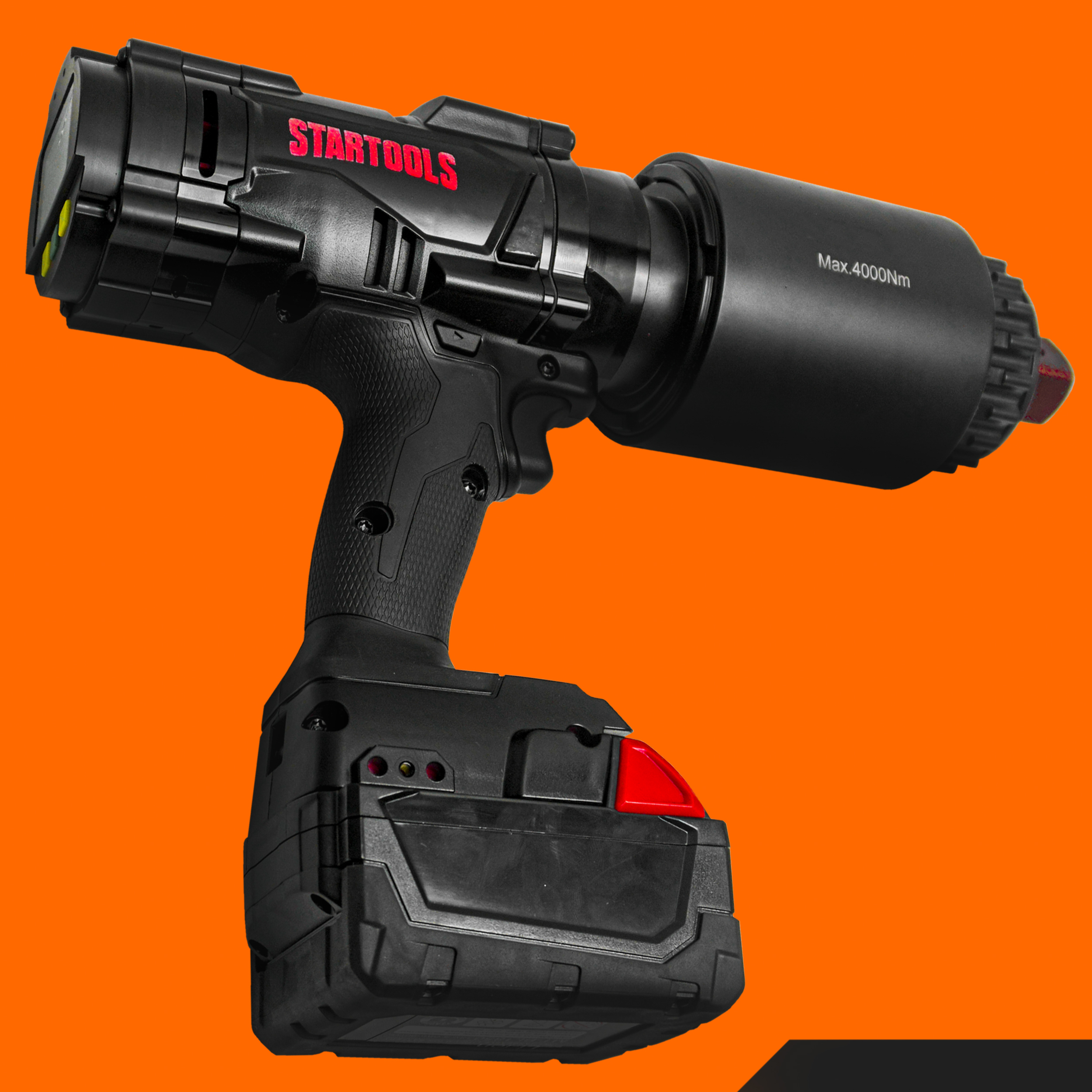

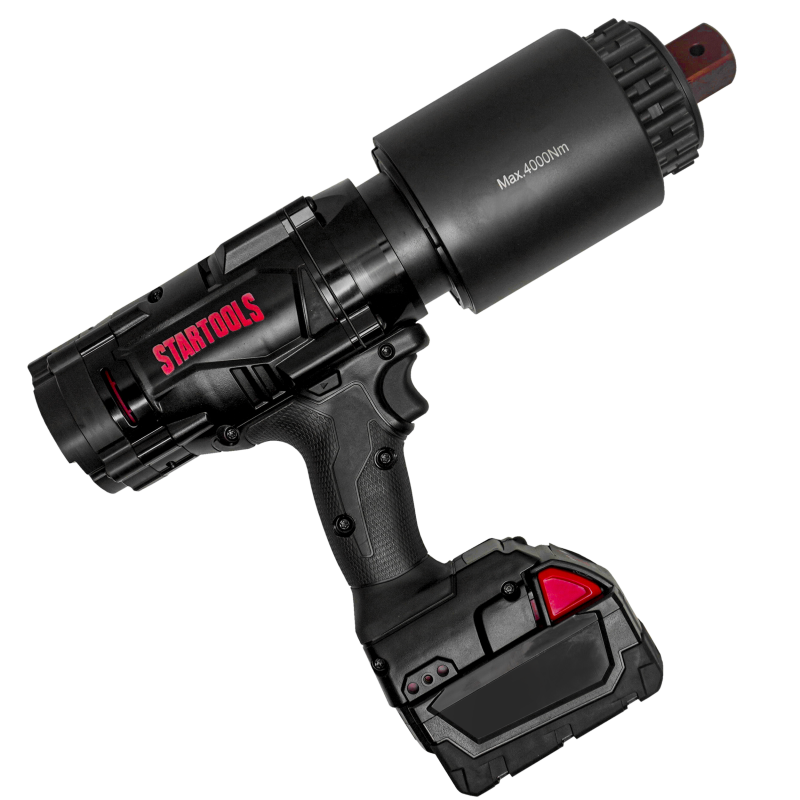

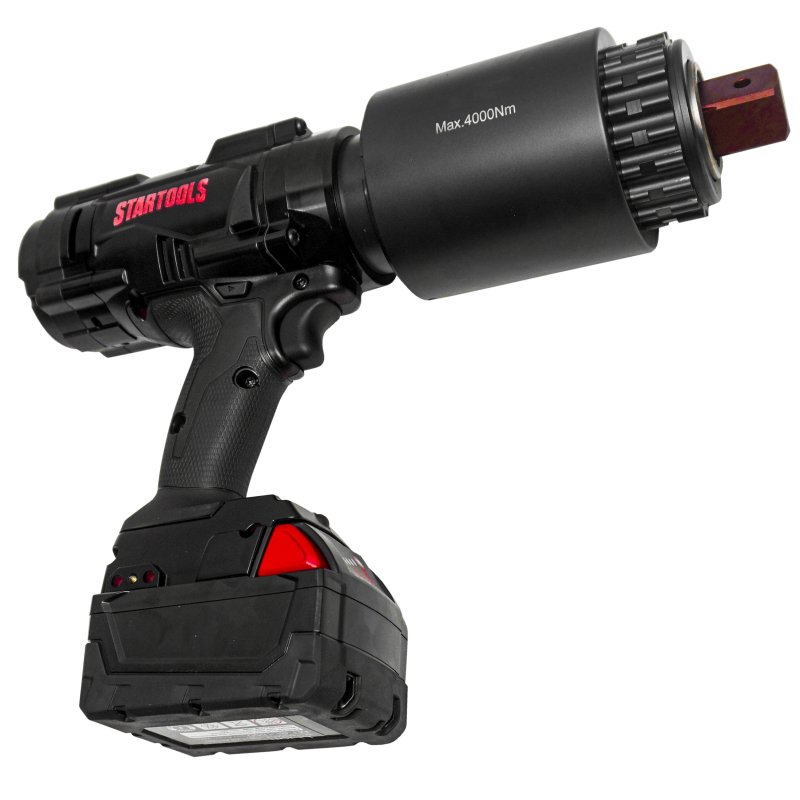

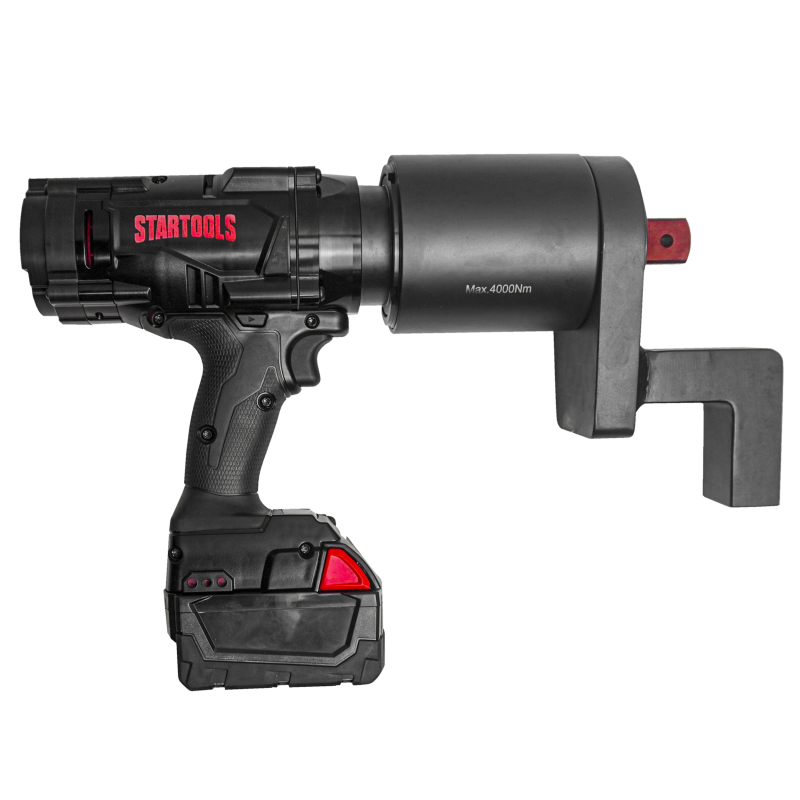

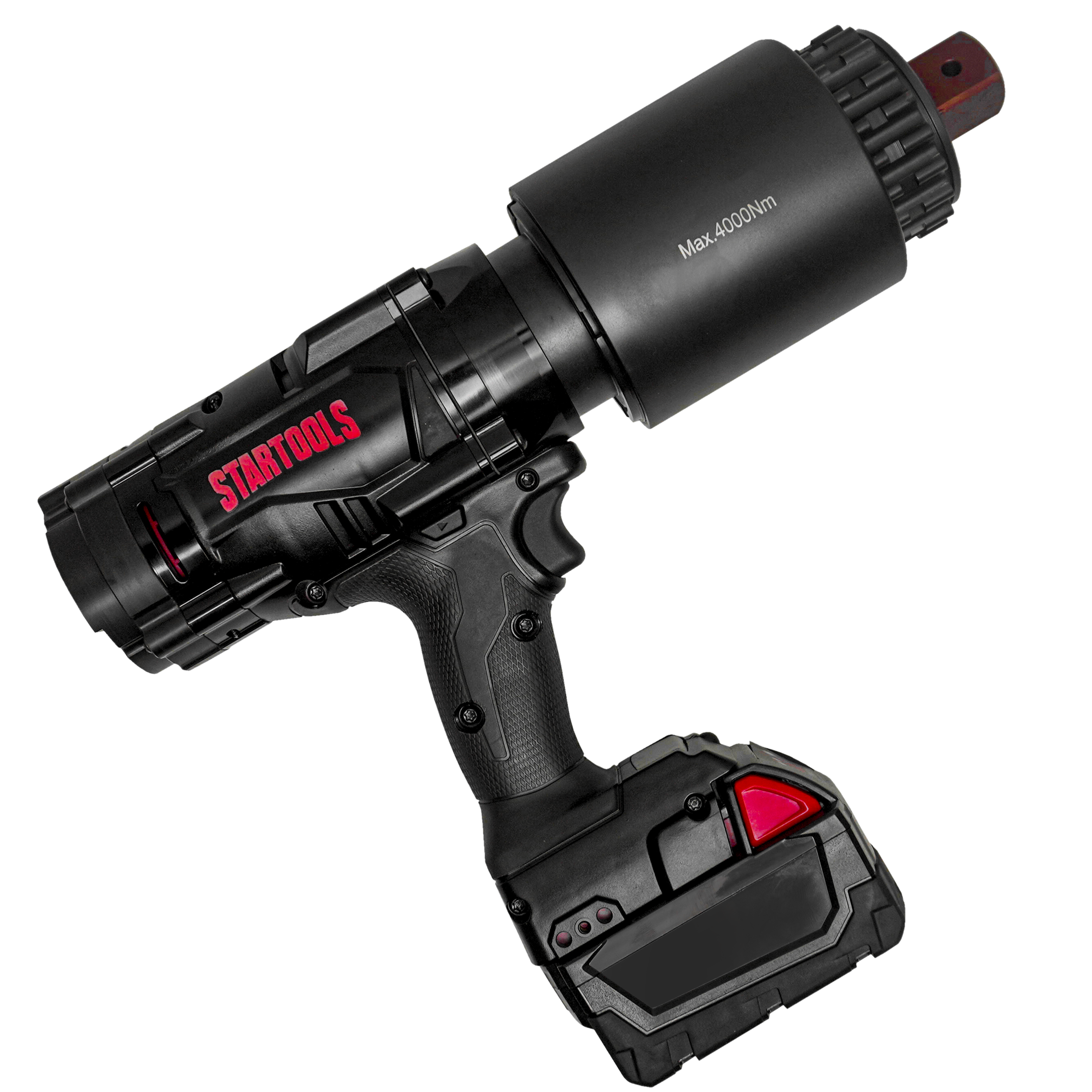

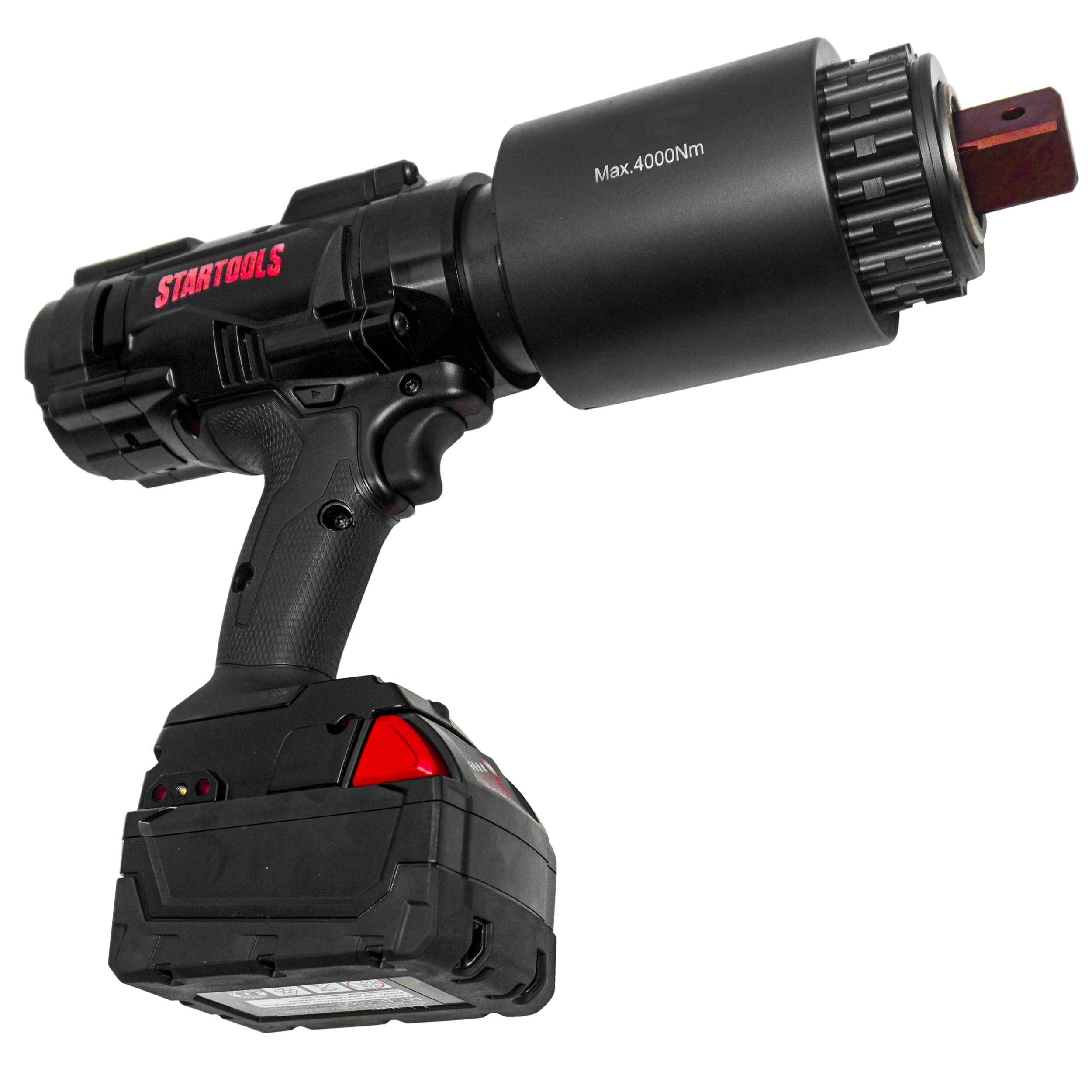

| Description | • Powerful Motor Driven by an advanced brush-less motor the STW reaches required torque with precision, efficiency and without overheating

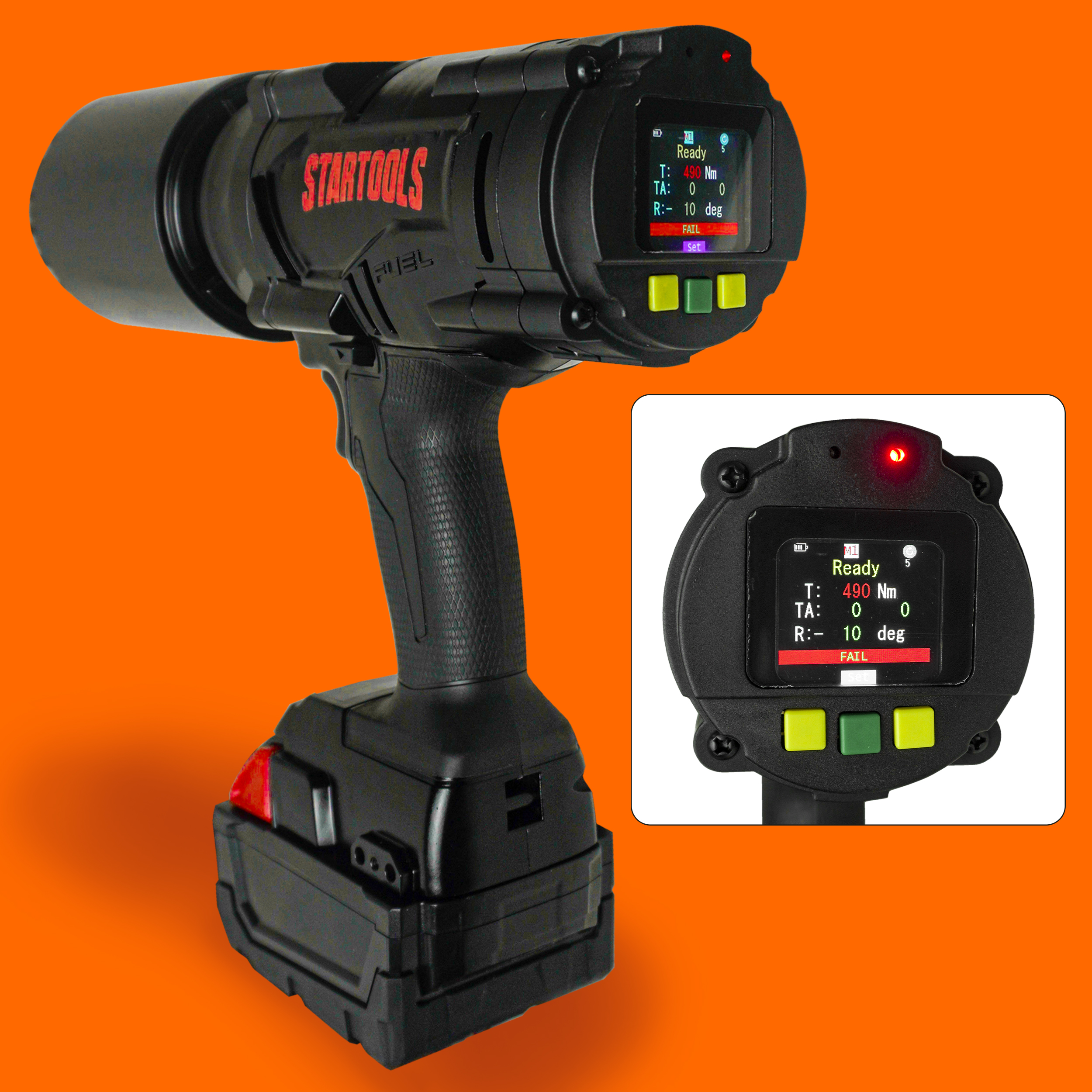

• User Friendly Design The large dynamic LCD screen with preset torque values
• Industry Leading Accuracy Highly Repeatable. The STW has +/-2% accuracy and with its’ simple re-calibration system allows users to deliver the required torque with confidence

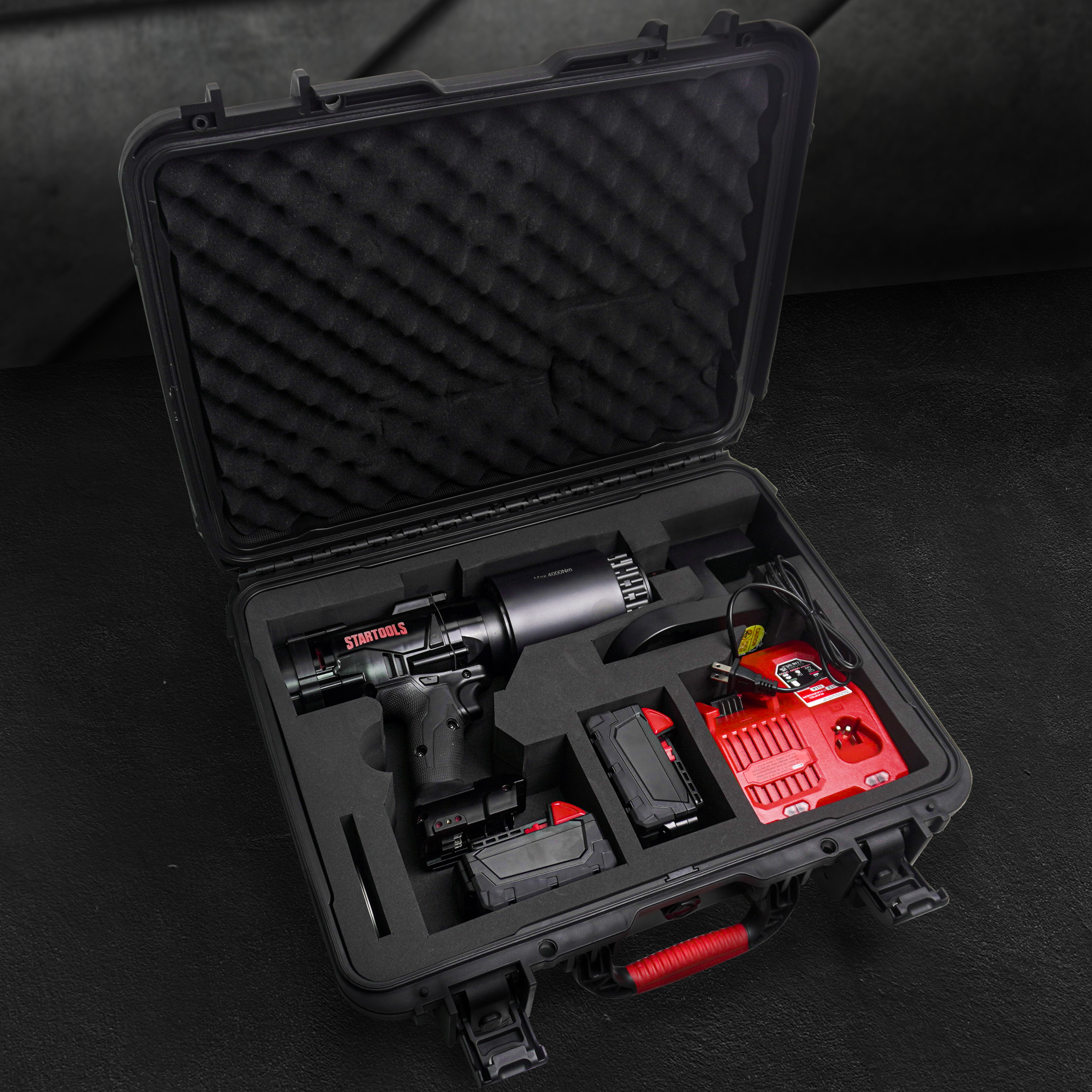

• Battery Power Each STW wrench comes with two 40V 8.0Ah Red-lithium batteries, allowing for more power and longer run time.
• Gear Technology Our advanced gear design produced with high strength alloy steel makes STW lighter, durable, and faster.
• Wide-Range Standard range from 100 N.m to 8,000 N.m.
• More Functions Real time torque display with angle and turn capabilities.
• Smart App Optional Wireless Bluetooth data recording system allows users to store and transfer data.
• Close-Loop System Optional built in transducer allows for increased accuracy +/-1%. | • High strength Chrome Molybdenum
• Suitable for use with pneumatic and electric impact wrenches
• Manufactured to DIN standards | • High torque ability and impact resistance suitable for heavy duty use
• Material: 59 CrMoV 4
• Standard: Conforms to DIN 911/ISO 2936
[video width="1920" height="1080" mp4="https://startoolsindonesia.com/wp-content/uploads/2023/10/Hex-Key-Wrench.mp4" poster="https://startoolsindonesia.com/wp-content/uploads/2023/10/Hex-Key-Wrench.jpg"][/video] | • Hardened & tempered to 50-58 HRC
• Material: Chrome Molybdenum Steel | • For use with air or electric power tools
• Standard: Conforms to DIN 3129/ISO 2725, DIN 3121/ISO 1174
• Hardened & tempered to 40-45 HRC
• Material: Chrome Molybdenum Steel | • Material: 31 CrV 3 Chrome Vanadium Steel
• Standard: Conforms to DIN 3122, form F/ISO 3315 |
| Content |

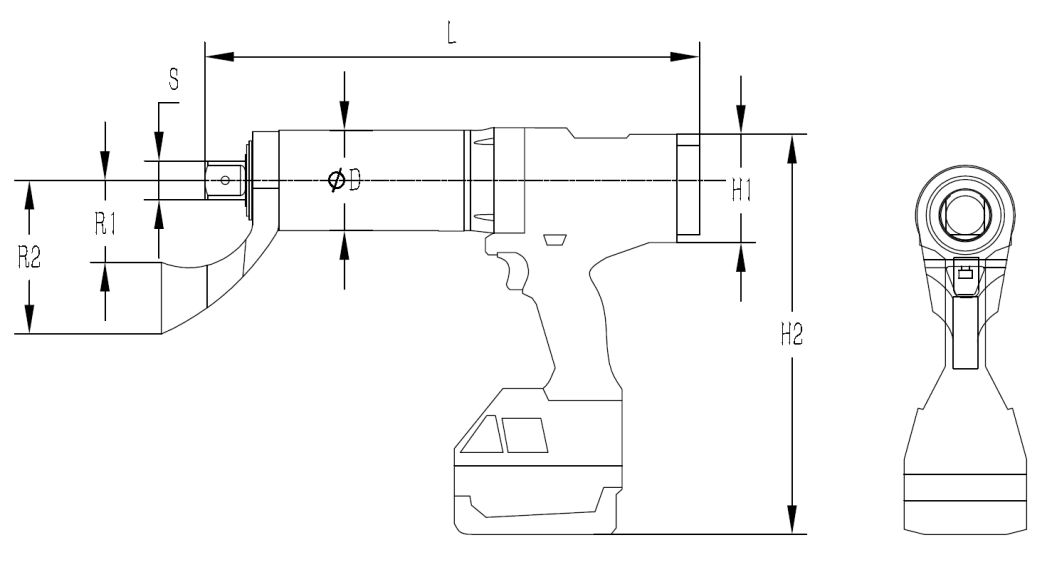

| Mfr.Pn |
Min
Torque
(N.m) |
Max
Torque
(N.m) |
Drive
Size |
D |
L |
H1 |
H2 |
R1 |
R2 |
Weight
(Kg) |
Max
Speed
(Rpm) |
| mm |
| STW-05 |
100 |
500 |
3/4" |
60 |
270 |
76 |
245 |
53 |
102 |
4.3 |
26 |
| STW-10 |
130 |
1000 |
3/4" |
74 |
277 |
76 |
245 |
60 |
115 |
4.8 |
18 |
| STW-15 |
180 |
1500 |
1" |
76 |
317 |
76 |
245 |
66 |
135 |
5.2 |
8 |
| STW-20 |
250 |
2100 |
1" |
76 |
317 |
76 |
245 |
66 |
135 |
5.5 |
6 |
| STW-30 |
480 |
3100 |
1" |
86 |
340 |
76 |
245 |
78 |
145 |
7.5 |
3.5 |
| STW-40 |
650 |
4000 |
1" |
95 |
350 |
76 |
245 |
78 |
145 |
9.5 |
3.2 |
| STW-50 |
850 |
5000 |
1.1/2" |
103 |
355 |
76 |
245 |
78 |
145 |
10 |
2.5 |
| STW-60 |
1100 |
6000 |
1.1/2" |
110 |
400 |
76 |
245 |
90 |
155 |
12 |
1.8 |
| STW-80 |
1900 |
8000 |
1.1/2" |
115 |
415 |
76 |
245 |
90 |
155 |
14 |
1.5 |
|
| Mfr.PN |
Size(mm) |
Length(mm) |
Part Number |
| 356-21x41 |
21x41 |
90 |
HT0003517 |
|
| Mfr.PN |
Size(mm) |
Size(in) |
L1(mm) |
L2(mm) |
Part Number |
| 108-1.5 |
1.5 |
|
15.5 |
46.5 |
HT0001027 |
| 108-2 |
2.0 |
|
18.0 |
52.0 |
HT0001028 |
| 108-2.5 |
2.5 |
|
20.5 |
58.5 |
HT0001029 |
| 108-3 |
3.0 |
|
23.0 |
66.0 |
HT0001030 |
| 108-4 |
4.0 |
|
29.0 |
74.0 |
HT0001031 |
| 108-5 |
5.0 |
|
33.0 |
85.0 |
HT0001032 |
| 108-6 |
6.0 |
|
38.0 |
96.0 |
HT0001033 |
| 108-8 |
8.0 |
|
44.0 |
108.0 |
HT0001034 |
| 108-10 |
10.0 |
|
50.0 |
122.0 |
HT0001035 |
| 108-12 |
12.0 |
|
57.0 |
137.0 |
HT0001036 |
| 108-14 |
14.0 |
|
70.0 |
154.0 |
HT0001037 |
| 108-17 |
17.0 |
|
80.0 |
177.0 |
HT0001038 |
| 108-19 |
19.0 |
|
89.0 |
199.0 |
HT0001039 |
| 108-22 |
22.0 |
|
102.0 |
222.0 |
HT0001040 |
| 108A-1/16 |
|
1/16" |
18.0 |
46.0 |
HT0001041 |
| 108A-5/64 |
|
5/64" |
19.0 |
50.0 |
HT0001042 |
| 108A-3/32 |
|
3/32" |
21.0 |
53.0 |
HT0001043 |
| 108A-1/8 |
|
1/8" |
24.0 |
59.0 |
HT0001044 |
| 108A-5/32 |
|
5/32" |
27.0 |
65.0 |
HT0001045 |
| 108A-3/16 |
|
3/16" |
30.0 |
72.0 |
HT0001046 |
| 108A-1/4 |
|
1/4" |
37.0 |
84.0 |
HT0001047 |
| 108A-5/16 |
|
5/16" |
42.0 |
97.0 |
HT0001048 |
| 108A-3/8 |
|
3/8" |
46.0 |
110.0 |
HT0001049 |
|
| Mfr.PN |
Sq Drive(in) |
Length(mm) |
Part Number |
| 369ST |
1.1/2" |
980 |
HT00003497 |
|
| Mfr.PN |
Size(mm) |
Length(mm) |
Part Number |
| 171-14 |
14 |
100 |
HT0002262 |
| 171-17 |
17 |
100 |
HT0002263 |
| 171-19 |
19 |
100 |
HT0002264 |
| 171-22 |
22 |
100 |
HT0002265 |
| 171-24 |
24 |
100 |
HT0002266 |
| 171-27 |
27 |
100 |
HT0002267 |
| 171-30 |
30 |
100 |
HT0002268 |
| 171-32 |
32 |
100 |
HT0002269 |
|
| Mfr.PN |
Sq.Drive |
Length(mm) |
Part Number |
| 112FH |
1/4” |
150 |
HT0001388 |
|
