| Description | • Standard pump accessories: remote controller, 5 meter hose
• Electric model includes oil cooler | • Includes 5 Hydraulic Test Gauges, 12 Test Couplings, 14 Tee Connectors, 1 Carter Quick Connector, 5 Test Hoses, and a Portable Storage Case
• 304 stainless steel casing and copper threaded joints, this hydraulic pressure gauge resists rust, shock, water, dust, and corrosion, ensuring long-lasting durability. The gauge is filled with high-grade glycerin, which maintains clarity and transparency, withstands extreme temperatures, and effectively reduces vibrations and pulsations | • Slim design allows tool to fit where a square drive tool can’t
• Simply connect hex links for quick and easy hex size changes
• 180/360 degree multi position hose couplers prevents hose interference on all jobs
• Made of highest quality materials (aluminum and steel alloys) for durability and longevity
• High precision ratchet for accuracy up to ± 3% | • Quick operation, super light, durable
• Crimp head can be rotated for adjustable directions
• Long comfortable ergonomic cushioned handle makes it easy to hold and use | • 3 Digital Pressure Gauges. The fuel pressure test kit two units and precise graduations, the meters are accurate in measuring pressure. Maximum working pressure: 80Mpa/11603psi
• 20pcs Interchangeable Test Couplings suitable for many kinds of standard excavators
• Test hose is made of nylon (inner), aramid (middle) and polyurethane (outer) to withstand high pressure
• 304 stainless steel shell and copper screw joint, making the gauge sturdy and durable for long service life. This hydraulic gauge test kit contains corrosion resistance gauges and carbon steel couplings with high strength. ; effectively reduces the affection of vibration and pulsation | • The Hydraulic Gauges adopt a 304 stainless steel shell and copper screw joint, making the gauge sturdy and durable for long service life
• Widely used in construction, machinery, ships, mining, and other industries
• Comes with 10 different couplings, can be used for Caterpillar, Hitachi, Komatsu, Daewoo, Hyundai, Kato, Kawasaki
|
| Content |
| Mfr.PN |
Max. Pressure PSI |
Max. Pressure Bar |
Tank Capacity Lite |
Part Number |
| 378 |
10.000 |
700 |
7.75 |
HY0000039 |
|
| Mfr.PN |
Content |
Part Number |
|
491 |
5 Hydraulic Gauges
(0-10 bar / 150 PSI; 0-100 bar /
1500 PSI; 0-250 bar / 4000 PSI; 0-400 bar /
6000 PSI; 0-600 bar / 10000 PSI) |
MT0000448 |
|
| Mfr.PN |
Nut Size (mm) |
Nut Size (in) |
Torque Range (Nm) |
Part Number |
| 383-2 |
24-60 |
1" - 2.375" |
232-2414 |
HY0000030 |
| 383-4 |
36-80 |
1.4375" - 3.125" |
585-6474 |
HY0000031 |
| 383-8 |
50-100 |
2" - 3.875" |
1094-11774 |
HY0000032 |
| 383-14 |
70-120 |
2.75" - 4.625" |
1558-26958 |
HY0000033 |
| 383-20 |
65-130 |
2.75" - 6" |
2695-26958 |
HY0000034 |
| 383-30 |
85-165 |
3.125" - 7.625" |
488-44593 |
HY0000035 |
| 383-50 |
105-225 |
4.13" - 8.85" |
7081-70813 |
HY0000036 |
|
| Mfr.PN |
Crimping Range |
Crimping Dies |
Stroke |
Crimp Type |
Part Number |
| 452-300 |
16-300mm2 |
16, 25, 35, 50,70, 95, 120,
150, 185, 240, 300mm2 |
20mm |
Hexagon |
HY0000004 |
|
| Mfr.PN |
Content |
Part Number |
|
490 |

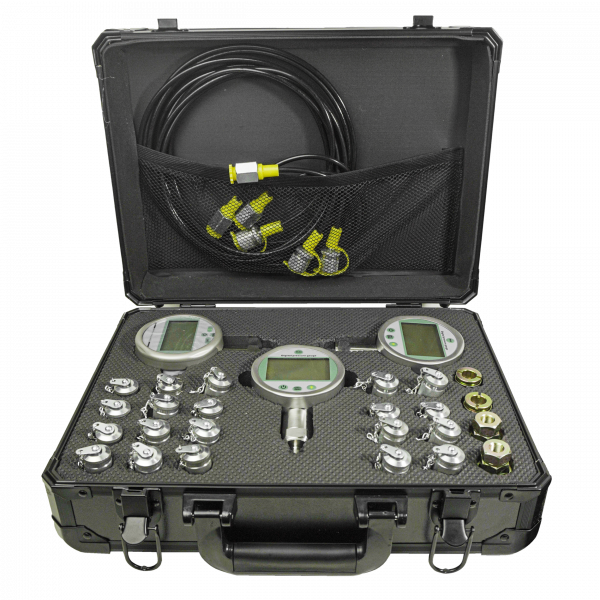

• 3 Digital Pressure Gauges:
Max 11603PSI/80Mpa
• 20pcs Interchangeable Test Couplings:
UNF5/16 • UNF7/16 • UNF7/16 • UNF9/16 •
ZG1/8 • ZG1/4 • NPT1/8 • UNF1/2 • M10*1 •
G1/4 • G1/4 • G1/8 • G1/8 • G3/8 • NPT1/4 •
M8*1 • M10*1.25 • M12*1.25 • M14*1.5 • M16*1.5
• 2,05 Meter Long Test Hose
|
MT0000447 |
|
| Mfr.PN |
Pressure Range (Bar) |
Part Number |
| 402 |
100,250,400,600 |
HY0000040 |
|
