| Description | • Fitted with trolley for easy movement | • Constructed of high-grade forged steel with a welded frame design for durability
• Large saddle surface area for better contact with load being supported | • Use for the removal, installation and moving of heavy duty diesel truck transmissions
• Universal adjustable saddle with four brackets that can be lined up with transmission pan configurations. | • Used for filling or topping-up engine, gearbox, differential | • Price do not include impact wrench
• Compatible with many kinds of pneumatic wrenches up to 50 lb
• Widened and enlarged base structure makes the heavy duty impact wrench tool holder more stable and fast to move. | • Air powered
• Super tough steel frame construction
• Designed for lifting heavy duty jobs i.e trucks, bus fleets
• Comes with 2 piece jack extension size: 45mm and 75mm |
| Content |
| Mfr.Pn |
Size (liter) |
Pump Ratio |
Output Pressure (Mpa) |
Output Volume (L/Min) |
Part Number |

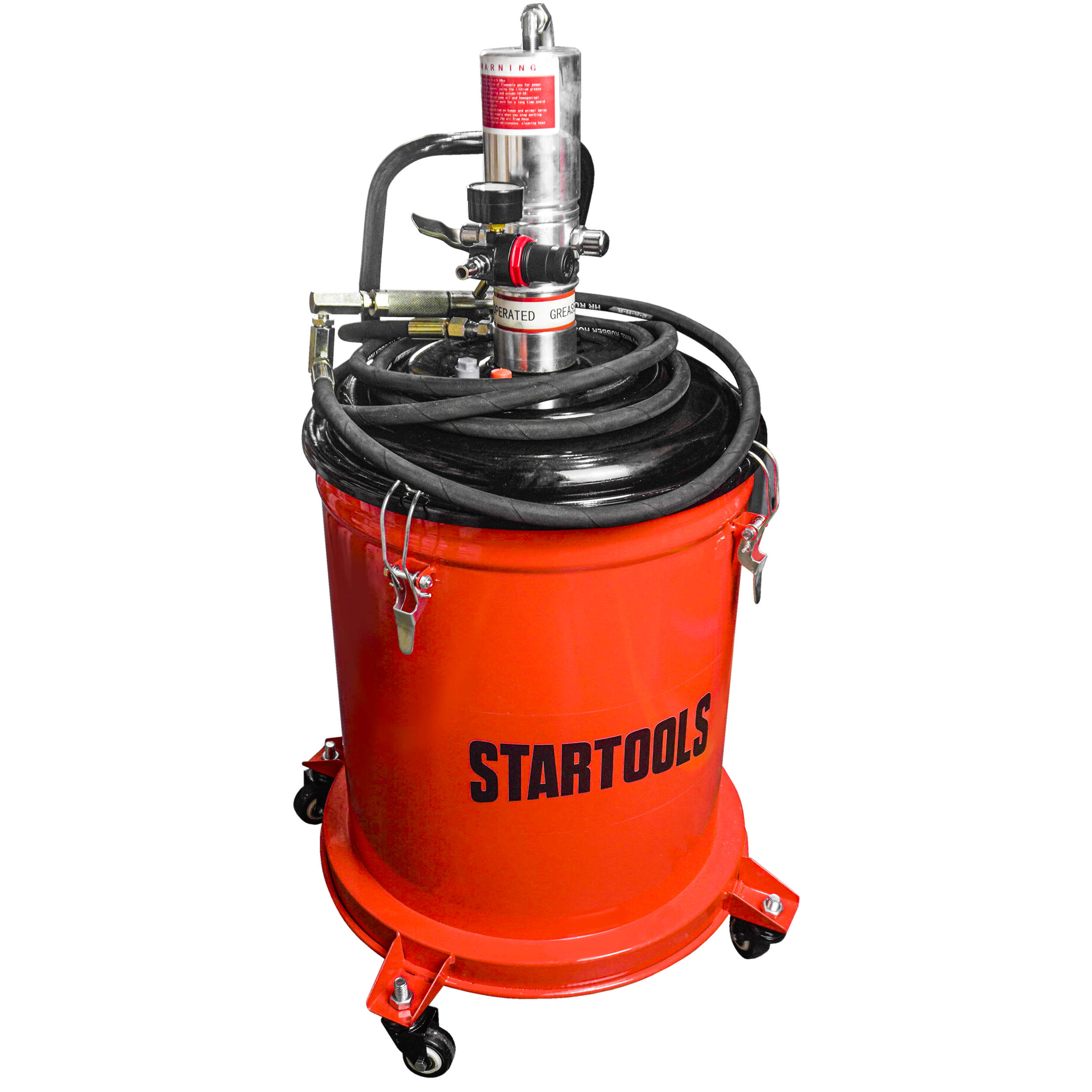

| 210-45 |
45 |
50:1 |
30-40 |
0-0.85L/min |
WE0000234 |
|
| Mfr.PN |
Capacity (T) |
No. Pieces |
Part Number |
| 226-20 |
20 |
1 |
WE0000231 |
| 226-25 |
25 |
1 |
WE0000243 |
|
| Mfr.PN |
Capacity (T) |
Part Number |
| 227-1 |
1 |
WE0000176 |
| 227-2 |
2 |
WE0000177 |
|
| Mfr.Pn |
Size (liter) |
Output Pressure (PSI) |
Part Number |
| 311-16 |
16 |
5000 |
WE0000253 |
| 311-20 |
25 |
5000 |
WE0000092 |
|
| Mfr.PN |
LIfting Weight (Kg) |
Product Weight (Kg) |
Part Number |
| 476-31 |
25 |
31 |
WE0000241 |
|
| Mfr.PN |
268-50 |
268-80 |
268-100 |
| Capacity (T) |
50/25 |
80/50 |
100/50 |
| No.Stage |
2 |
2 |
2 |
| Min. Height (mm) |
195 |
200 |
200 |
| Max. Height (mm) |
420 |
425 |
425 |
| Tire Height |
|
|
240 |
| Tire Width |
|
|
23.3 |
| Tire Thickness |
|
|
6.6 |
| A (mm) |
56 |
85 |
105 |
| B (mm) |
95 |
125 |
145 |
| C (mm) |
136 |
165 |
190 |
| D (mm) |
160 |
200 |
220 |
| E (mm) |
1250 |
1250 |
1335 |
| F (mm) |
60 |
60 |
40 |
| G (mm) |
40 |
40 |
60 |
| H (mm) |
95 |
90 |
90 |
| I (mm) |
95 |
90 |
90 |
| J (mm) |
190 |
205 |
205 |
| K (mm) |
180 |
180 |
180 |
| L (mm) |
530 |
620 |
870 |
| M (mm) |
370 |
370 |
- |
| N (mm) |
295 |
300 |
- |
| O (mm) |
670 |
700 |
- |
| Part Number |
WE0000170 |
WE0000171 |
WE0000172 |
|
