| Description | • For use with air or electric power tools
• Standard: Conforms to DIN 3121/ISO 1174
• Hardened & tempered to 40-45 HRC
• Material: Chrome Molybdenum Steel | • High torque ability and impact resistance suitable for heavy duty use
• Material: 59 CrMoV 4
• Standard: Conforms to DIN 911/ISO 2936
[video width="1920" height="1080" mp4="https://startoolsindonesia.com/wp-content/uploads/2023/10/Hex-Key-Wrench.mp4" poster="https://startoolsindonesia.com/wp-content/uploads/2023/10/Hex-Key-Wrench.jpg"][/video] | • Suitable for use in awkward areas, swivel angle up to 30°
• Extra long pattern for difficult to reach areas
• High torque ability and impact resistance suitable for heavy duty use
• Material: 59 CrMoV 4
• Standard: Conforms to DIN 911/ISO 2936
[video width="1920" height="1080" mp4="https://startoolsindonesia.com/wp-content/uploads/2023/10/Extra-Long-Ball-End-Hex-Key.mp4" poster="https://startoolsindonesia.com/wp-content/uploads/2023/10/Extra-Long-Ball-End-Hex-Key.jpg"][/video] | • Standard: Conforms to DIN 3121/ISO 1174
• Hardened & tempered to 40-45 HRC
• Material: Chrome Molybdenum Steel
• Size 200 & 300mm with ball retainer, 400mm without ball retainer | • With 2 component handle
• Standard: Conforms to DIN 3123, form E
[video width="1920" height="1080" mp4="https://startoolsindonesia.com/wp-content/uploads/2023/10/Spinner-handler.mp4" poster="https://startoolsindonesia.com/wp-content/uploads/2023/10/Intro-0000619.jpg"][/video] | • Standard: Conforms to DIN 3121/ISO 1174
• Hardened & tempered to 40-45 HRC
• Material: Chrome Molybdenum Steel |
| Content |
| Mfr.PN |
Sq Drive(in) |
Length(mm) |
Part Number |

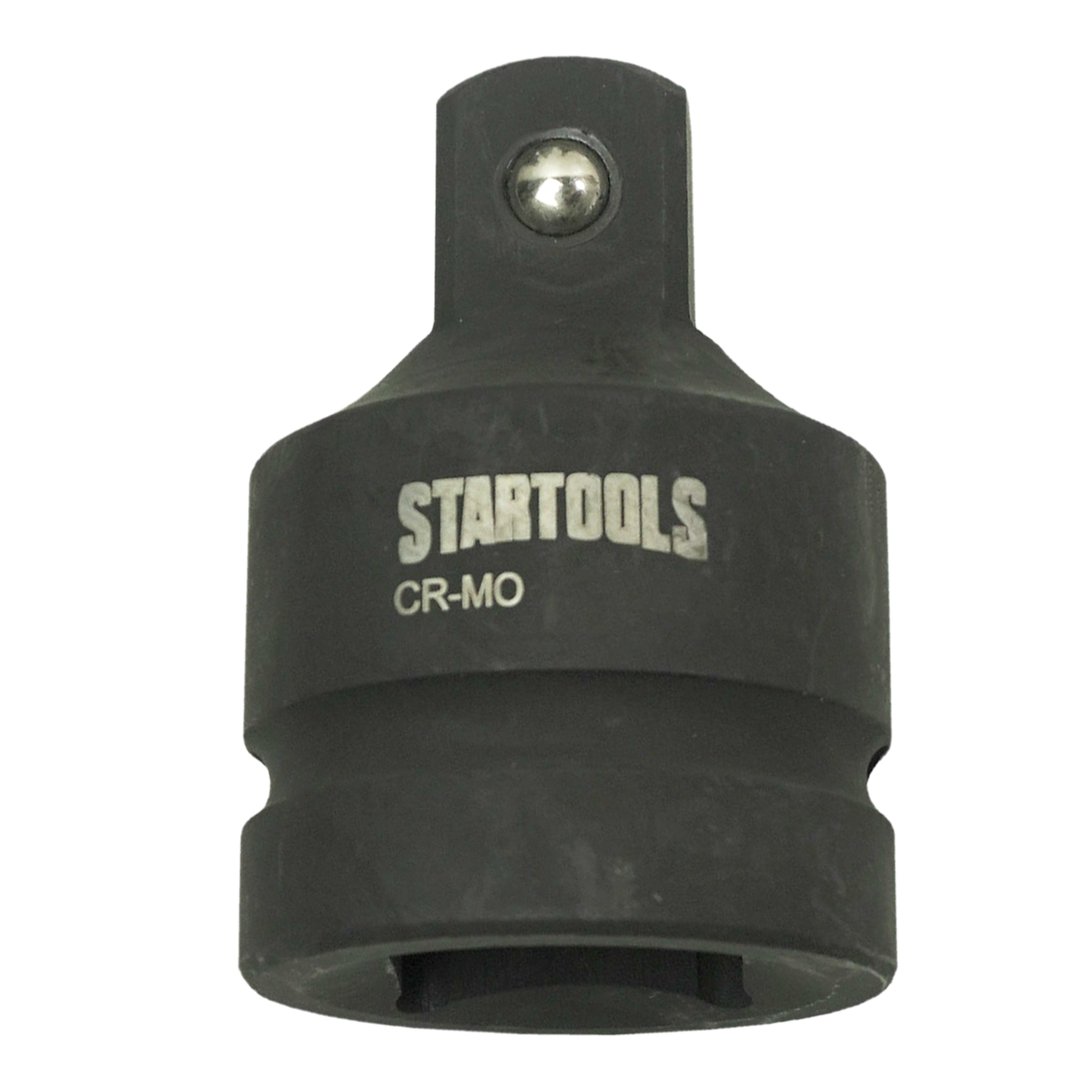

| 164-1/2X3/8 |
1/2"F-3/8"M |
38 |
HT0002022 |
| 164-1/2X3/4 |
1/2"F-3/4"M |
48 |
HT0002023 |
|
| Mfr.PN |
Size(mm) |
Size(in) |
L1(mm) |
L2(mm) |
Part Number |
| 108-1.5 |
1.5 |
|
15.5 |
46.5 |
HT0001027 |
| 108-2 |
2.0 |
|
18.0 |
52.0 |
HT0001028 |
| 108-2.5 |
2.5 |
|
20.5 |
58.5 |
HT0001029 |
| 108-3 |
3.0 |
|
23.0 |
66.0 |
HT0001030 |
| 108-4 |
4.0 |
|
29.0 |
74.0 |
HT0001031 |
| 108-5 |
5.0 |
|
33.0 |
85.0 |
HT0001032 |
| 108-6 |
6.0 |
|
38.0 |
96.0 |
HT0001033 |
| 108-8 |
8.0 |
|
44.0 |
108.0 |
HT0001034 |
| 108-10 |
10.0 |
|
50.0 |
122.0 |
HT0001035 |
| 108-12 |
12.0 |
|
57.0 |
137.0 |
HT0001036 |
| 108-14 |
14.0 |
|
70.0 |
154.0 |
HT0001037 |
| 108-17 |
17.0 |
|
80.0 |
177.0 |
HT0001038 |
| 108-19 |
19.0 |
|
89.0 |
199.0 |
HT0001039 |
| 108-22 |
22.0 |
|
102.0 |
222.0 |
HT0001040 |
| 108A-1/16 |
|
1/16" |
18.0 |
46.0 |
HT0001041 |
| 108A-5/64 |
|
5/64" |
19.0 |
50.0 |
HT0001042 |
| 108A-3/32 |
|
3/32" |
21.0 |
53.0 |
HT0001043 |
| 108A-1/8 |
|
1/8" |
24.0 |
59.0 |
HT0001044 |
| 108A-5/32 |
|
5/32" |
27.0 |
65.0 |
HT0001045 |
| 108A-3/16 |
|
3/16" |
30.0 |
72.0 |
HT0001046 |
| 108A-1/4 |
|
1/4" |
37.0 |
84.0 |
HT0001047 |
| 108A-5/16 |
|
5/16" |
42.0 |
97.0 |
HT0001048 |
| 108A-3/8 |
|
3/8" |
46.0 |
110.0 |
HT0001049 |
|
| Mfr.PN |
Size(mm) |
Size(in) |
L1(mm) |
L2(mm) |
Part Number |
| 108BL-1.5 |
1.5 |
|
15.5 |
91.5 |
HT0001126 |
| 108BL-2 |
2.0 |
|
18.0 |
102.0 |
HT0001127 |
| 108BL-2.5 |
2.5 |
|
20.5 |
114.0 |
HT0001128 |
| 108BL-3 |
3.0 |
|
23.0 |
129.0 |
HT0001129 |
| 108BL-4 |
4.0 |
|
29.0 |
144.0 |
HT0001130 |
| 108BL-5 |
5.0 |
|
33.0 |
165.0 |
HT0001131 |
| 108BL-6 |
6.0 |
|
38.0 |
186.0 |
HT0001132 |
| 108BL-8 |
8.0 |
|
44.0 |
208.0 |
HT0001133 |
| 108BL-10 |
10.0 |
|
50.0 |
234.0 |
HT0001134 |
| 108BL-12 |
12.0 |
|
57 |
219 |
HT0001135 |
| 108BL-14 |
14.0 |
|
70 |
244 |
HT0001136 |
| 108BL-17 |
17.0 |
|
78 |
257 |
HT0001137 |
| 108BL-19 |
19.0 |
|
83 |
336 |
HT0003469 |
| 108BL-22 |
22.0 |
|
95 |
388 |
HT0003470 |
| 108BL-24 |
24.0 |
|
105 |
431 |
HT0003471 |
| 108BLA-1/16 |
|
1/16" |
18.0 |
91.0 |
HT0001138 |
| 108BLA-5/64 |
|
5/64" |
19.0 |
102.0 |
HT0001139 |
| 108BLA-3/32 |
|
3/32" |
21.0 |
114.0 |
HT0001140 |
| 108BLA-1/8 |
|
1/8" |
24.0 |
129.0 |
HT0001141 |
| 108BLA-5/32 |
|
5/32" |
27.0 |
144.0 |
HT0001142 |
| 108BLA-3/16 |
|
3/16" |
30.0 |
165.0 |
HT0001143 |
| 108BLA-1/4 |
|
1/4" |
37.0 |
186.0 |
HT0001144 |
| 108BLA-5/16 |
|
5/16" |
42.0 |
208.0 |
HT0001145 |
| 108BLA-3/8 |
|
3/8" |
46.0 |
234.0 |
HT0001146 |
|
| Mfr.PN |
Length(mm) |
Part Number |
| 173-150 |
150 |
HT0003728 |
| 173-200 |
200 |
HT0002272 |
| 173-250 |
250 |
HT0003602 |
| 173-300 |
300 |
HT0002273 |
| 173-400 |
400 |
HT0002274 |
|
| Mfr.PN |
Sq.Drive |
Length(mm) |
Part Number |
| 113SH |
1/4” |
150 |
HT0001389 |
|
| Mfr.PN |
Sq Drive(in) |
Length(mm) |
Part Number |
| 165-125 |
1/2" |
125 |
HT0002024 |
| 165-250 |
1/2" |
250 |
HT0002025 |
|
