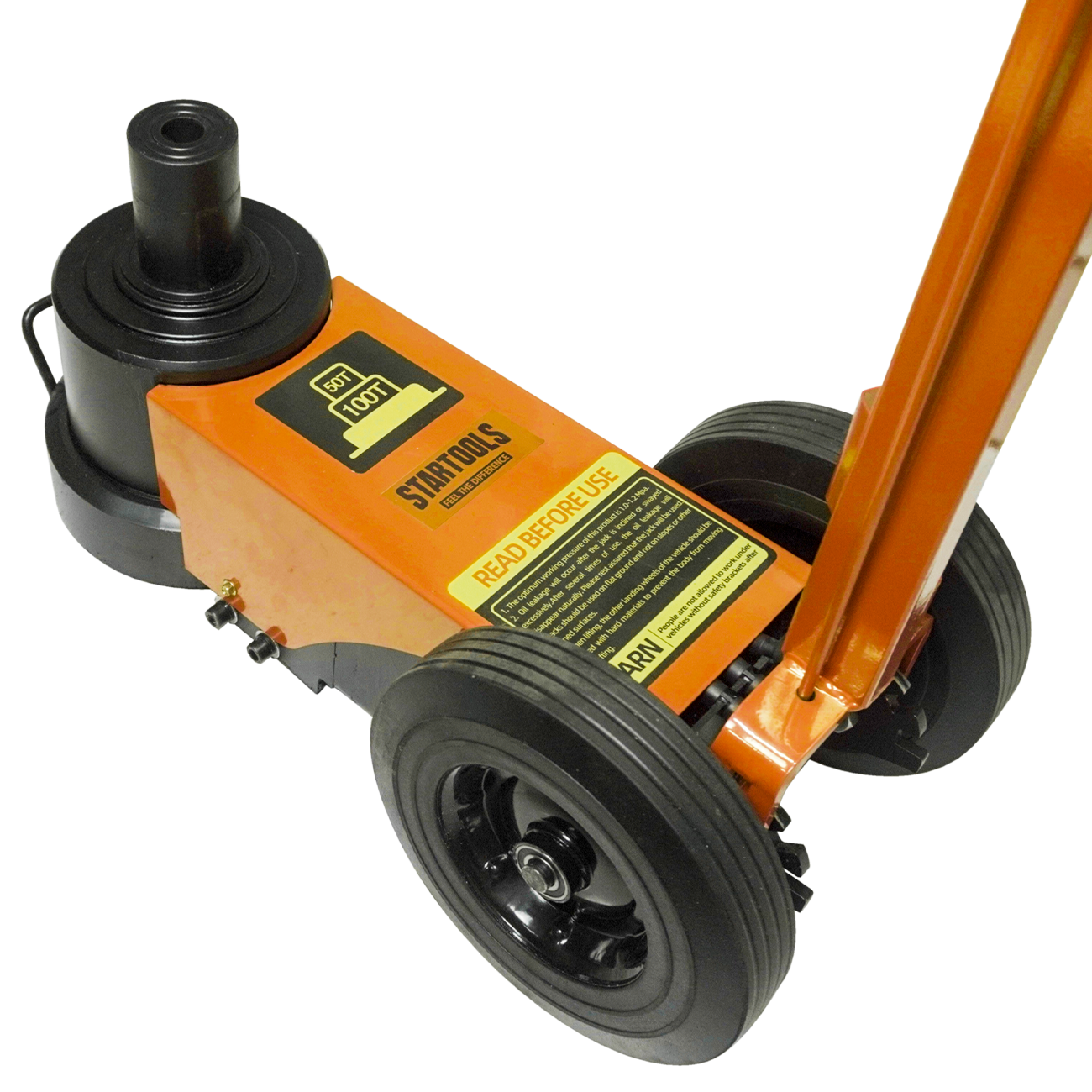

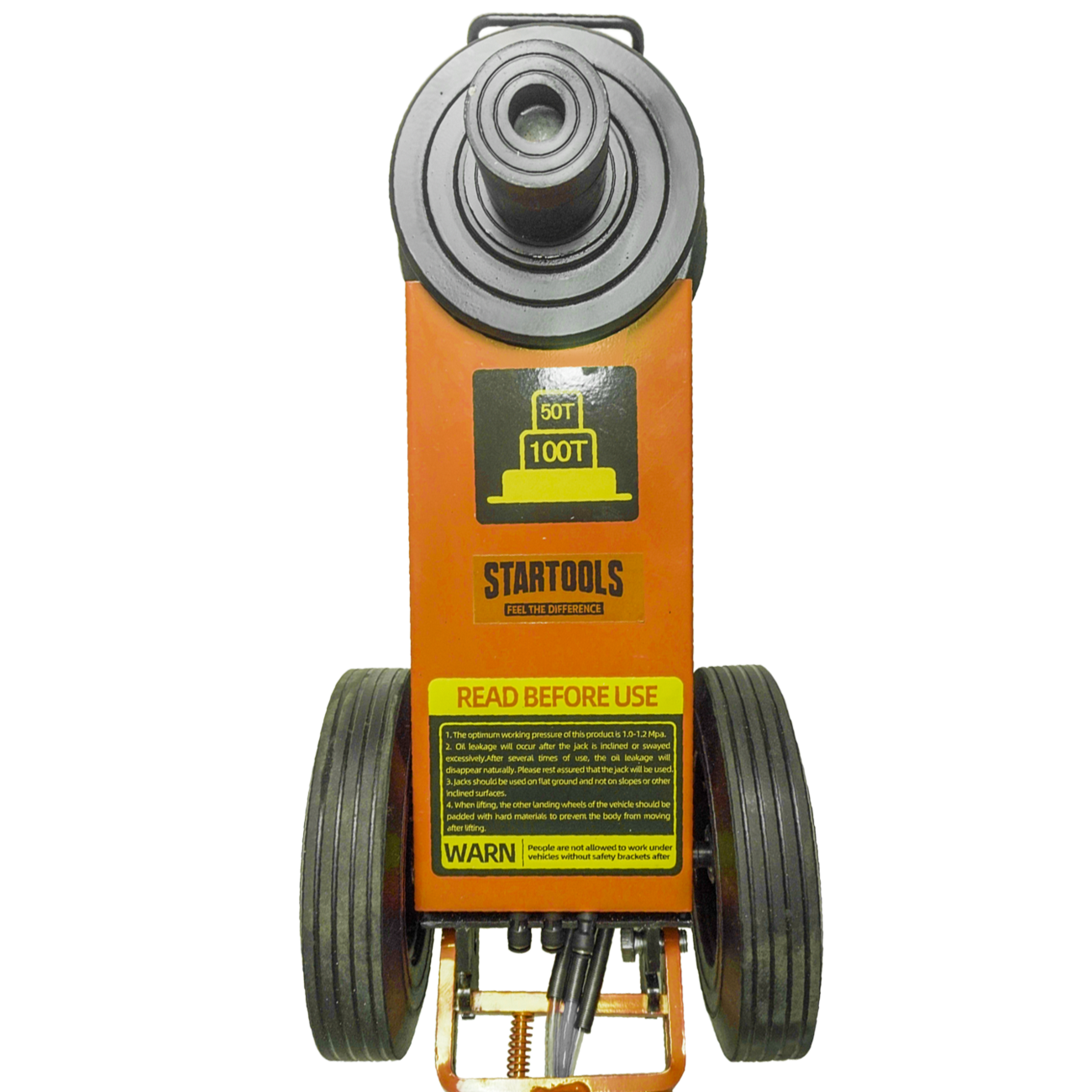

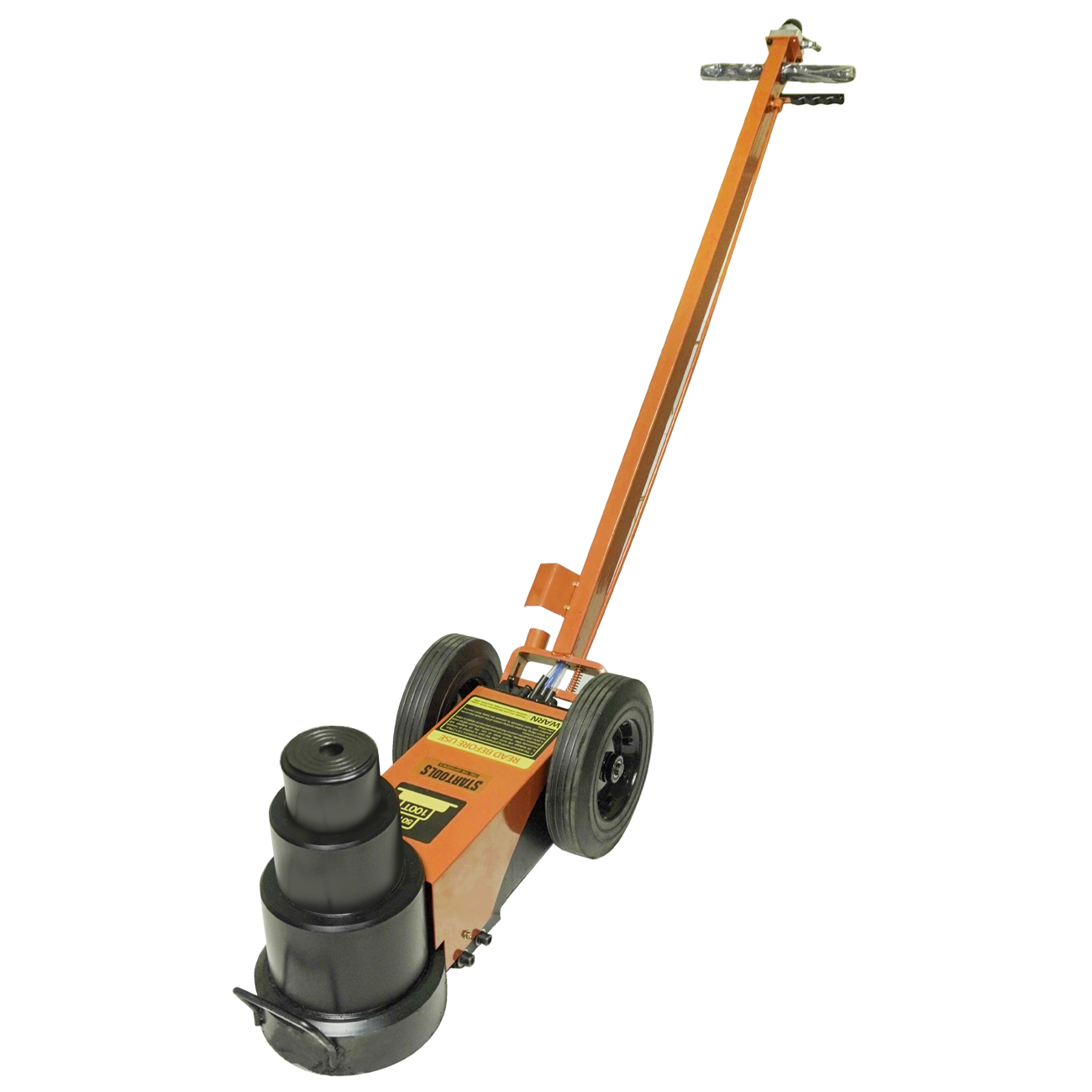

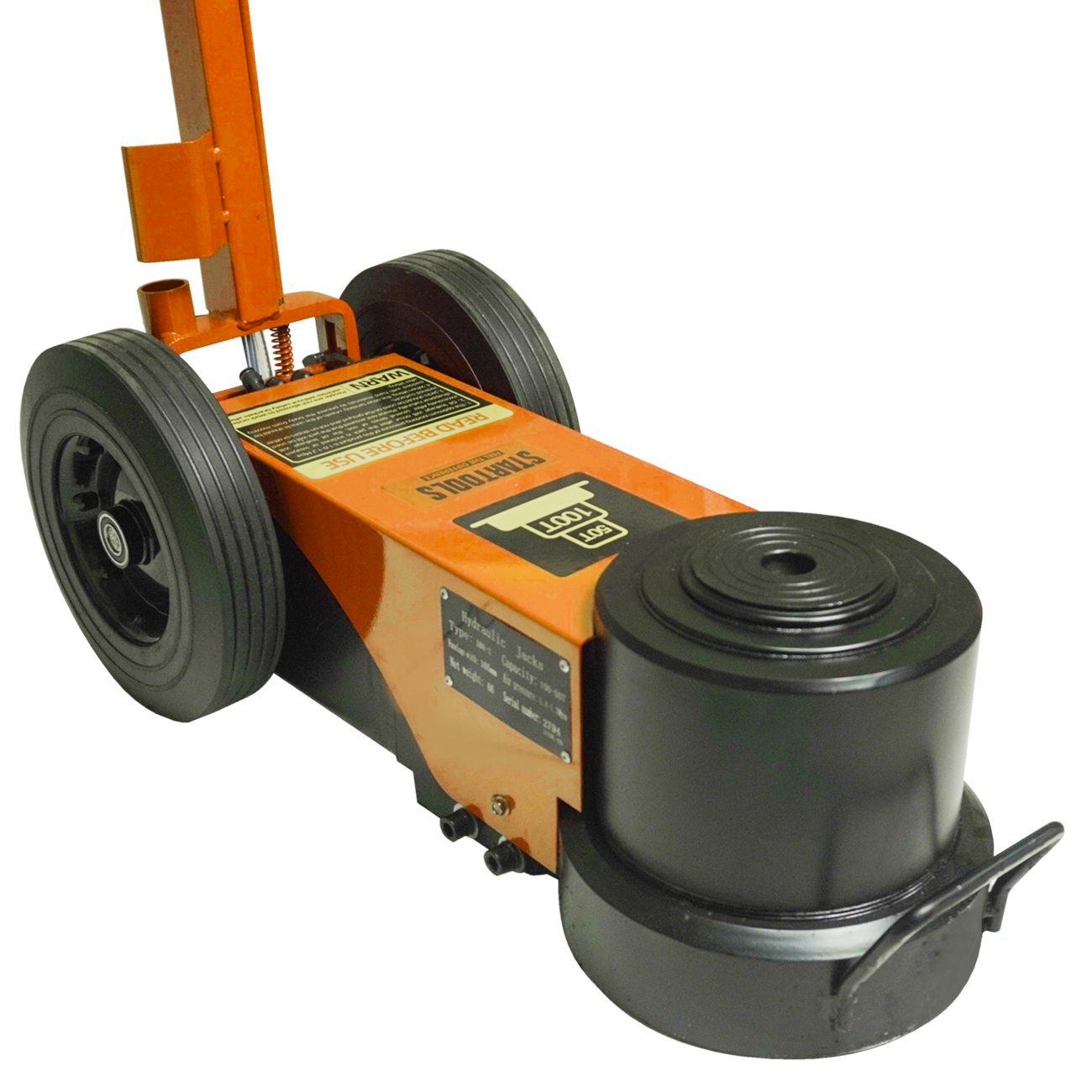

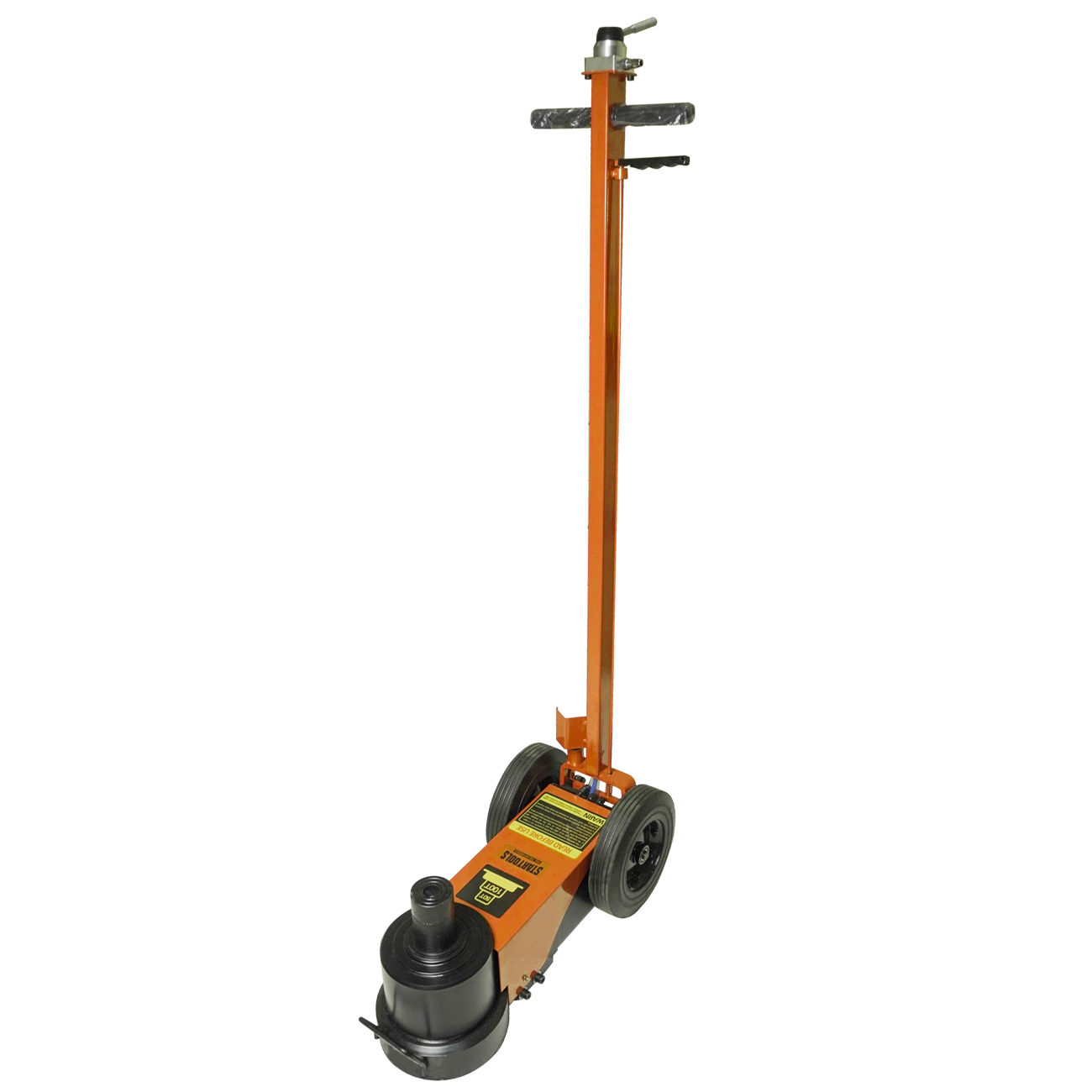

| Description | • Air powered
• Super tough steel frame construction
• Designed for lifting heavy duty jobs i.e trucks, bus fleets

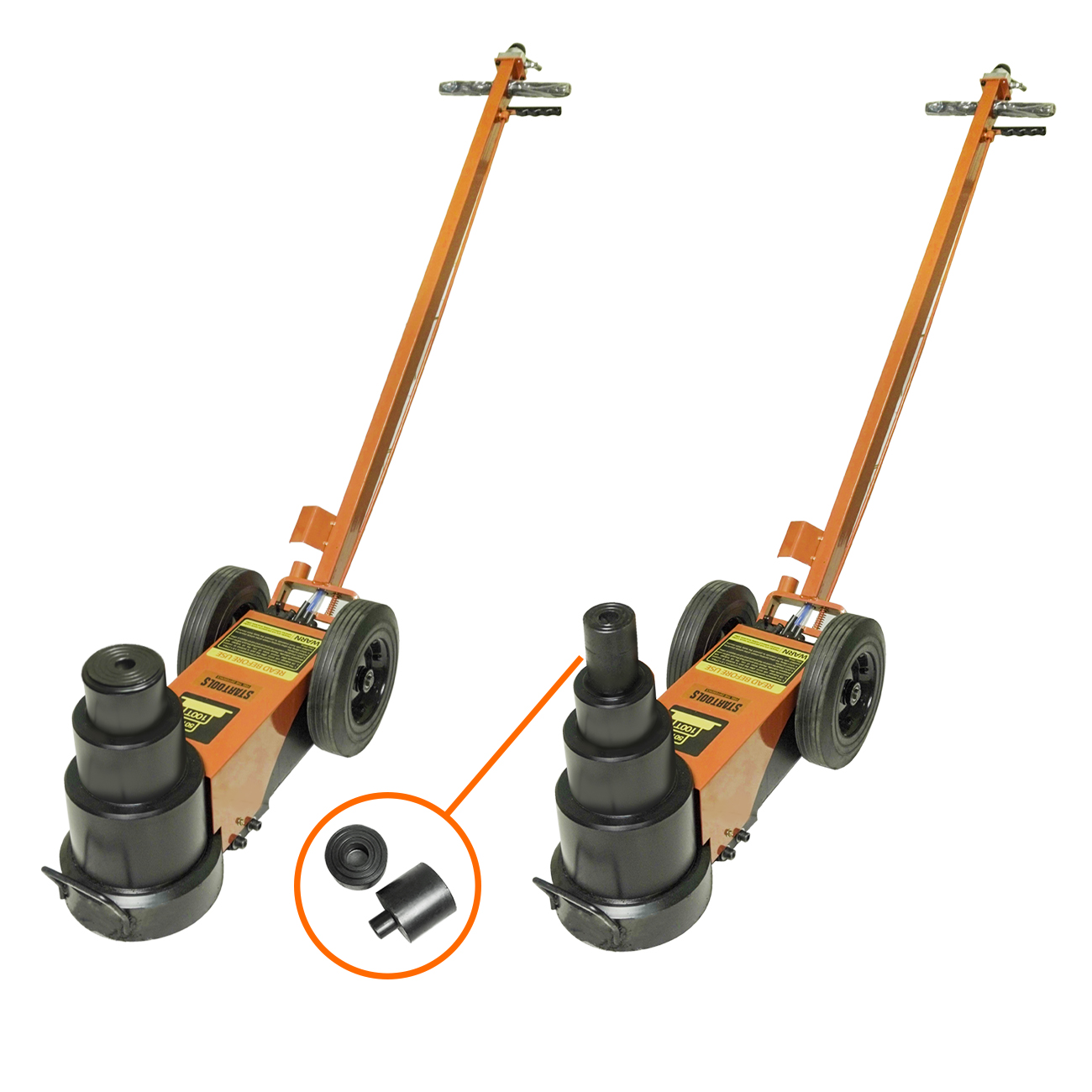

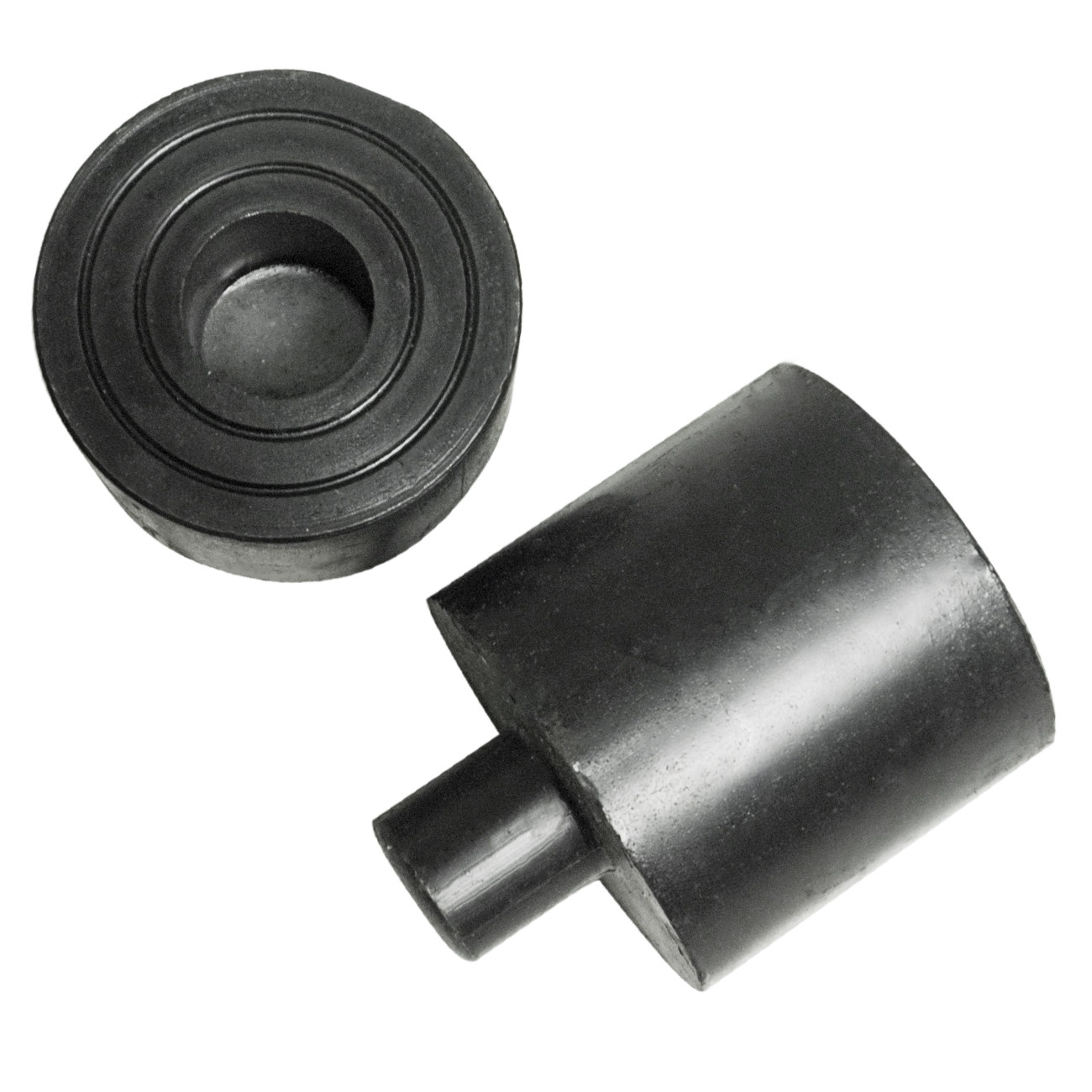

• Comes with 2 piece jack extension size: 45mm and 75mm | • Fully padded bench
• Adjustable, cushioned headrest for added positioning
• Constructed with heavy-duty tubular steel | • Fitted with trolley for easy movement | • Cast iron construction | • Welded inner/outer structure provides leak free performance for heavy duty use
• Large base provides stability
• With safety valve | • Used for lifting, lowering, and relocating loads |
| Content |

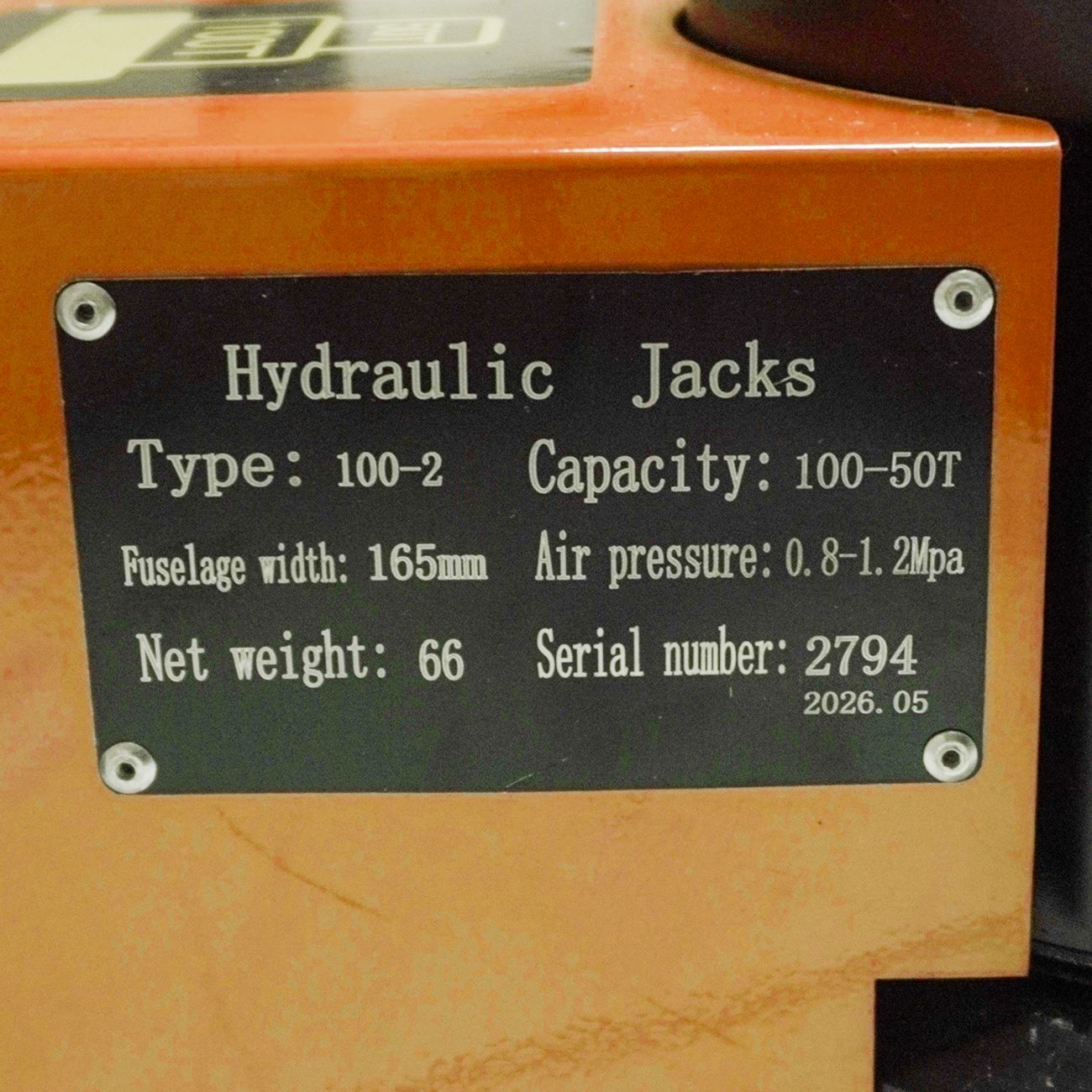

| Mfr.PN |
268-50 |
268-80 |

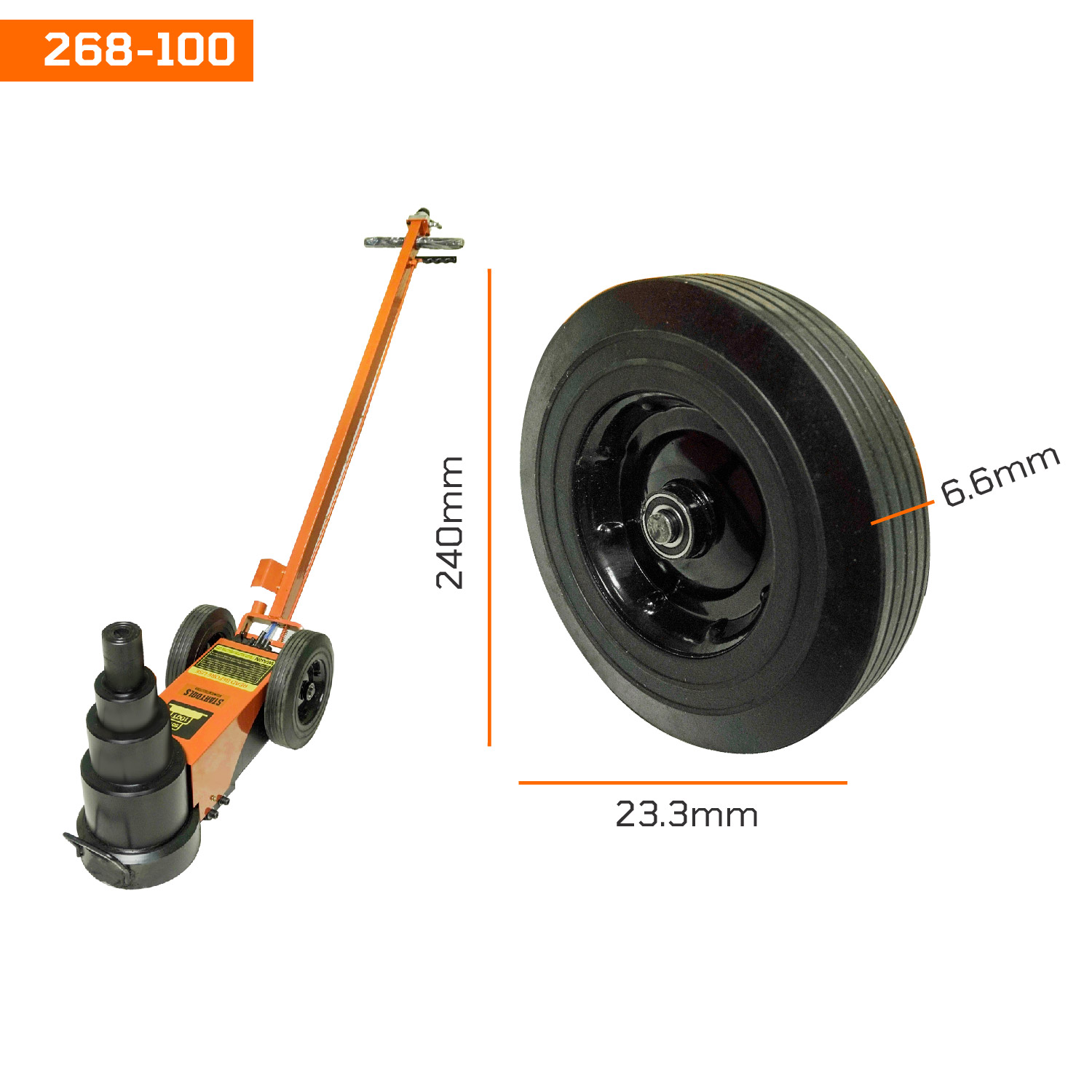

268-100 |
| Capacity (T) |
50/25 |
80/50 |
100/50 |
| No.Stage |
2 |
2 |
2 |
| Min. Height (mm) |
195 |
200 |
200 |
| Max. Height (mm) |
420 |
425 |
425 |
| A (mm) |
56 |
85 |
105 |
| B (mm) |
95 |
125 |
145 |
| C (mm) |
136 |
165 |
190 |
| D (mm) |
160 |
200 |
220 |
| E (mm) |
1250 |
1250 |
1335 |
| F (mm) |
60 |
60 |
40 |
| G (mm) |
40 |
40 |
60 |
| H (mm) |
95 |
90 |
90 |
| I (mm) |
95 |
90 |
90 |
| J (mm) |
190 |
205 |
205 |
| K (mm) |
180 |
180 |
180 |
| L (mm) |
530 |
620 |
870 |
| M (mm) |
370 |
370 |
- |
| N (mm) |
295 |
300 |
- |
| O (mm) |
670 |
700 |
- |
| Part Number |
WE0000170 |
WE0000171 |
WE0000172 |
|
| Mfr.PN |
Size |
Capacity |
Part Number |
| 229-40 |
40” |
250Lbs |
WE0000132 |
|
| Mfr.Pn |
Size (liter) |
Part Number |
| 210-20 |
20 |
WE0000094 |
| 210-45 |
45 |
WE0000234 |
|
| Mfr.Pn |
Description |
Part Number |
| 313 |
Hand grease pump 500cc |
WE0000084 |
| 313H |
Flexible hose |
WE0000085 |
|
| Mfr.PN |
Capacity (T) |
Min.
H.(mm) |
Lifting.
H.(mm) |
Adjust.
H.(mm) |
Max.
H.(mm) |
Part Number |
| 223-2 |
2 |
148/158 |
80/90 |
50 |
278/298 |
WE0000143 |
| 223-4 |
4 |
175 |
100 |
50 |
325 |
WE0000144 |
| 223-6 |
6 |
185 |
110 |
60 |
355 |
WE0000145 |
| 223-10 |
10 |
195 |
115 |
60 |
370 |
WE0000146 |
| 223-16 |
16 |
215 |
130 |
60 |
405 |
WE0000147 |
| 223-20 |
20 |
235 |
145 |
60 |
440 |
WE0000148 |
| 223-32 |
32 |
255 |
150 |
/ |
405 |
WE0000149 |
| 223-50 |
50 |
255 |
150 |
/ |
405 |
WE0000150 |
| 223-100 |
100 |
335 |
180 |
/ |
515 |
WE0000151 |
|
| Mfr.PN |
Capacity(T) |
Part Number |
| 228-2 |
2 |
WE0000178 |
| 228-3 |
3 |
WE0000233 |
|
