| Description | • A general purpose tool designed for porting, light weld grinding, and breaking sharp edges
• Ball bearing construction for longer tool life | • Tough Steel Hammer Case For Heavy Duty Application
• Individual sparepart sold separately |
• The air needle scaler has a necking design at the front end, which makes the needle more concentrated, improves accuracy, and avoids damage to the working surface.
• Ideal for surface preparation work, including the cleaning or removal of paint, rust, dirt, or weld slag.
| • Ideal for surface preparation work, including the cleaning or removal of paint, rust, dirt, or weld slag | • A general purpose tool designed for porting, light weld grinding, and breaking sharp edges
• Ball bearing construction for longer tool life | • Ideal for
• metal cutting
• Surface Chipping
• Surface Scraping
• Use for casting sand cleaning
• Welding front opening groove
• Welding Slag
• Flat solder scar
• Correction of stone
• Concrete and brick wall
opening work |
| Content |
| Mfr.PN |
Collet Size |
Free Speed
(RPM) |
Weight
(kg) |
Hose
Size |
Part Number |

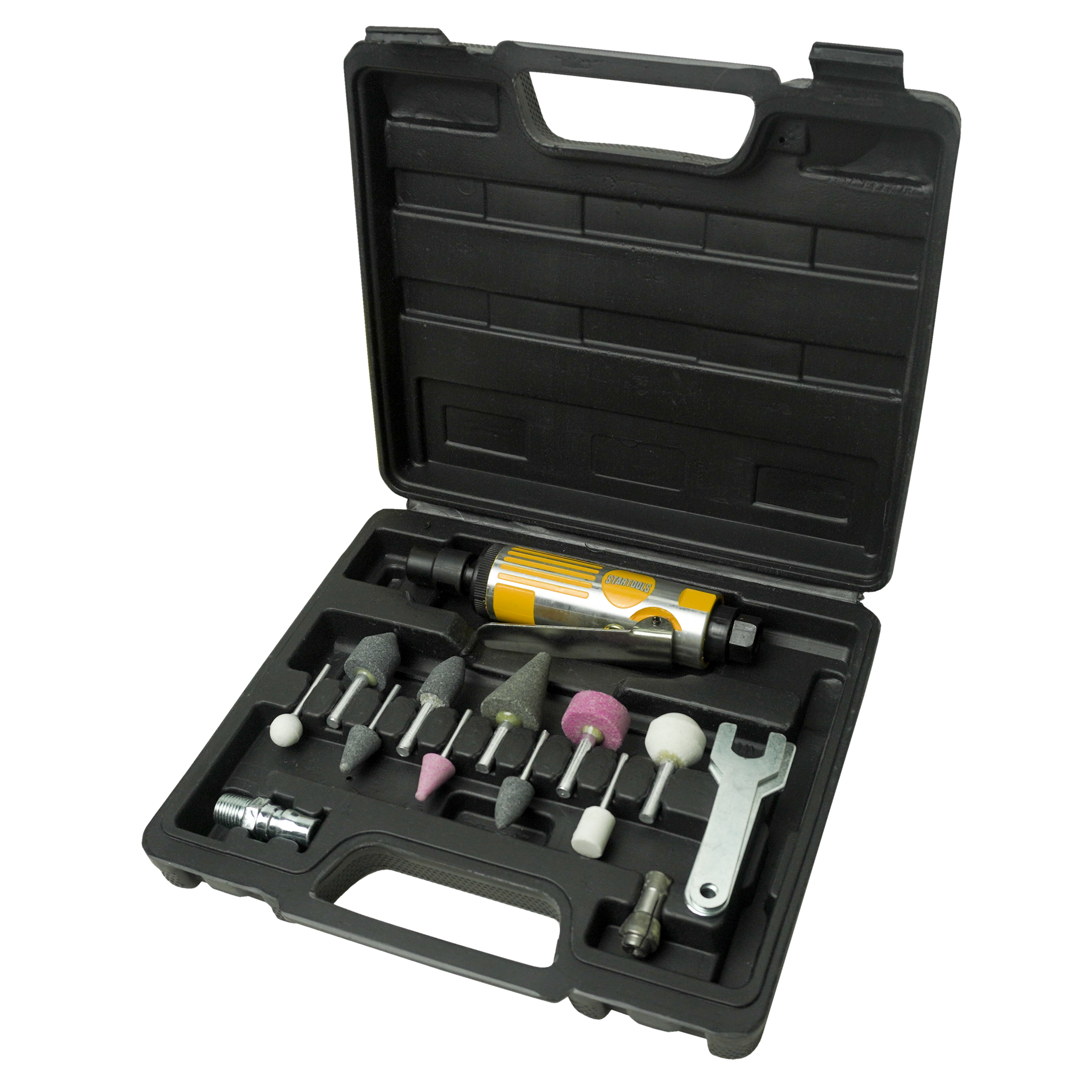

| 322KIT-1 |
6mm (1/4”) |
25000 |
0.56 |
1/4" |
AT0000328 |
|
| Mfr.PN |
Drive Size |
Maximum Torque
(Nm) |
Free Speed
(RPM) |
Weight
(kg) |
Hose Size |
Part Number |
| 320-2200 |
3/4” |
2200 |
3200 |
6.8 |
3/8” |
AT0000325 |
|
| Mfr.PN |
Blow Per Min |
Needle Qty (Pcs) |
Stroke Length (mm) |
Hose Size |
Part Number |
| 401S |
4600 |
19 |
40 |
3/8" |
AT0000339 |
|
| Mfr.PN |
401G-24 |
401G-28 |
| Rated Air Pressure (MPa {kgf/cm²}) |
0.59 {6} |
0.59 {6} |
| Air Consumption (No load) |
0.27 m³/min |
0.35 m³/min |
| Stroke Speed (min⁻¹) |
4000 |
4500 |
| Needle Size (mm) |
2 OD × 180 (53 pcs.) or 3 OD × 180 (23 pcs.) |
2 OD × 180 (66 pcs.) or 3 OD × 180 |
| Hose Size (Inch) |
3/8 |
3/8 |
| Weight (Kg) |
2.7 |
3.5 |
|
Standard
Accessories |
• Needle 3mm OD × 180 mm : 23 pcs. on the body
• 6 mm Hex. Socket Screw Key : 1 pc.
• Bushing PT3/8 × NPT3/8 : 1 pc.
• Hose Nipple PT3/8 × 3/8 : 1 pc.
|
• Needle 4mm OD × 180 mm : 14pcs.
(Needle 3mm OD × 180 mm : 28 pcs. on the body)
• Needle Supporter 4mm OD : 1 pc.
• Bushing : 1 pc.
• Hose Nipple : 1 pc.
|
| Part Number |
AT0000340
|
AT0000354
|
|
| Mfr.PN |
Collet Size |
Free Speed
(RPM) |
Weight
(kg) |
Hose
Size |
Part Number |
| 322-1 |
6mm (1/4”) |
25000 |
0.35 |
1/4" |
AT0000327 |
|
| Mfr.PN |
Chisel Shank
(mm) |
Bore Dia.
(mm) |
BPM |
Hos Size |
Air Consumption
(cfm) |
Part Number |
| 422 |
10.185 |
19.05 |
4500 |
3/8" |
5 |
AT0000336 |
|
